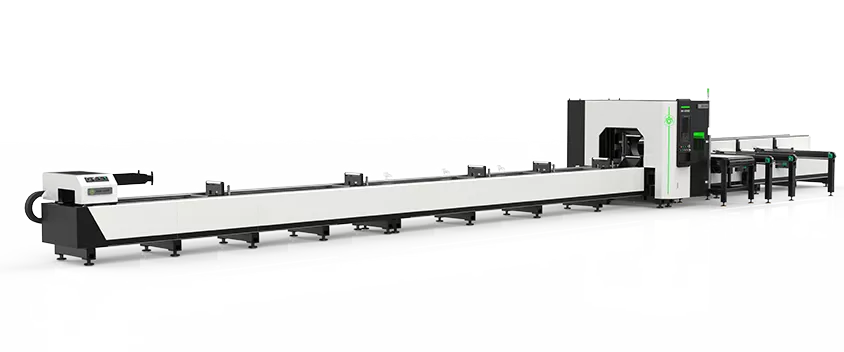

NH-12036Q
Cutting head rotary tube laser cutting machine
1. Cutting Power and Versatility：The 12036 Cutting Head Rotary Tube Laser Cutting Machine is equipped with a high - power laser source, typically ranging from 3000W to 30000W. This power enables it to cut various metal tubes, including stainless steel, carbon steel, and aluminum alloy. It can handle round, square, and rectangular tubes, suiting diverse industrial applications.
2. Laser Head Rotation Design：Unique in its design, the laser head rotates instead of using a traditional chuck. This allows for more flexible and precise cutting. The rotation mechanism enables seamless cutting of complex shapes and angles, such as bevel cuts up to ±45° (optional), without the limitations of a chuck - based system.
3. High - Precision Cutting：Featuring a positioning accuracy of ±0.05mm/m and a repeat positioning accuracy of ±0.02mm, this Cutting Head Rotary Tube Laser Cutting Machine ensures high - precision results. Whether it's straight cuts or intricate patterns, the stable laser head movement and advanced control system guarantee smooth edges with minimal burrs, meeting strict manufacturing standards.
4. Efficient Feeding System：The semi - automatic feeding structure allows for easy loading of multiple tubes at once. Tubes are then automatically fed into the cutting area according to the set cutting speed. This not only saves time but also ensures a continuous cutting process, improving overall productivity.
5. Robust Bed Structure：Its side - mounted bed, often made of thick - walled steel plates, offers enhanced stability. After being welded, it undergoes annealing to relieve internal stress and secondary vibration aging treatment for precision machining. This reduces deformation and ensures reliable operation during high - speed cutting, even for long - term use.

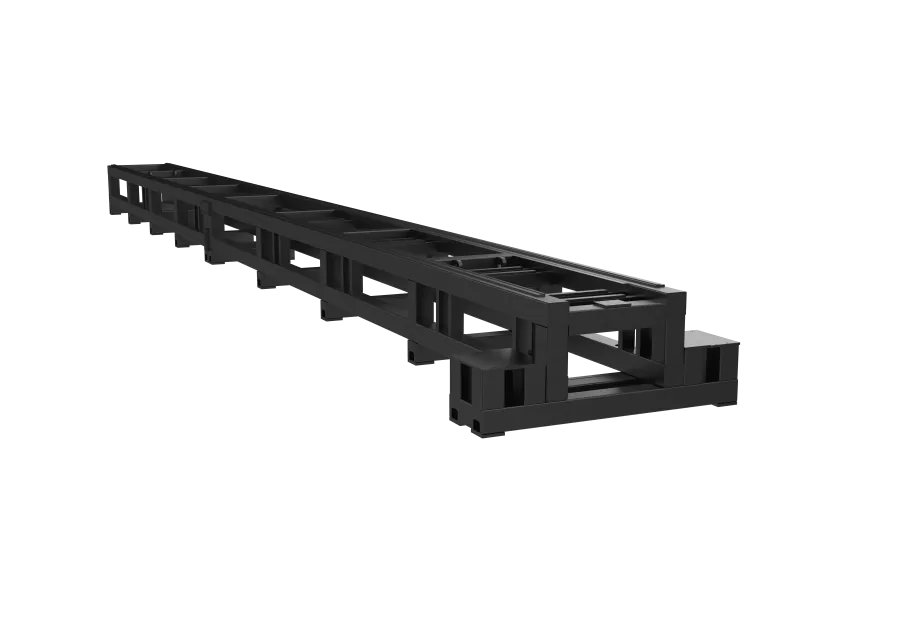

Advantages of bed structure
Its optimized design eliminates the traditional chuck, allowing a more streamlined layout that maximizes workspace for longer or irregular pipes. Constructed with high-strength steel, the bed ensures exceptional rigidity and load-bearing capacity, stabilizing pipes during cutting without chuck constraints. It undergoes precision machining and stress-relief treatments to minimize deformation, maintaining consistent accuracy.
Innovative breakthrough without chuck
The non-chuck pipe cutter excels in flexibility, handling long/irregular pipes without chuck constraints. It enables continuous cutting, boosting efficiency. Its open design eases loading/unloading, reduces interference, and ensures stable precision, ideal for diverse, high-volume tasks with lower operational complexity.

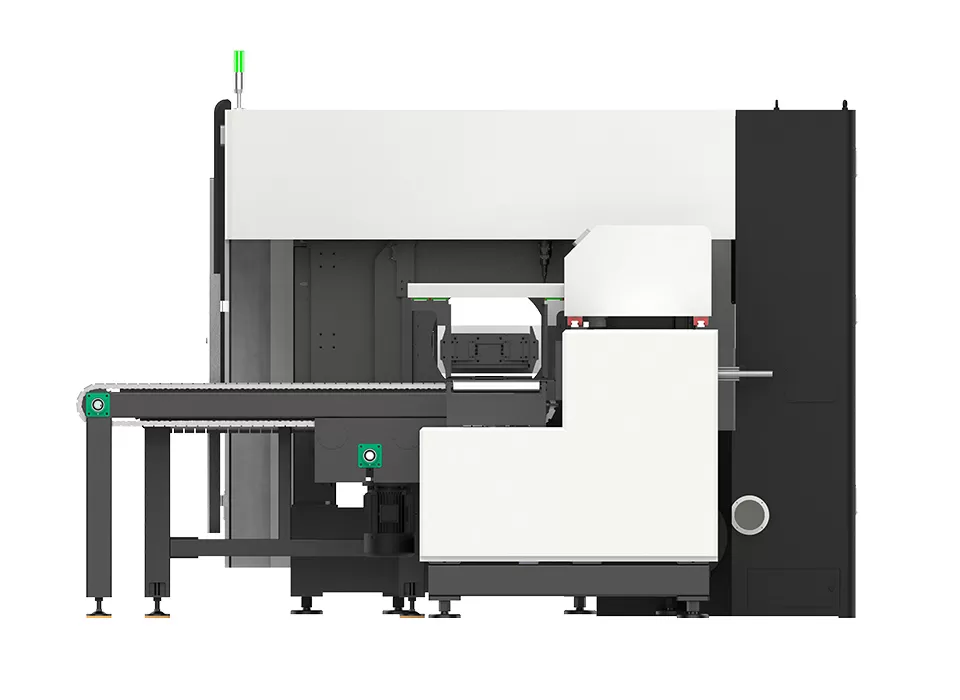

Cutting head 360° rotation
The 360° rotating cutting head of non-chuck pipe cutters enables seamless, multi-angle cutting—bevels, complex contours—without repositioning. It ensures consistent precision across the pipe’s circumference, boosts efficiency, and suits irregular/long pipes, enhancing versatility in diverse applications.

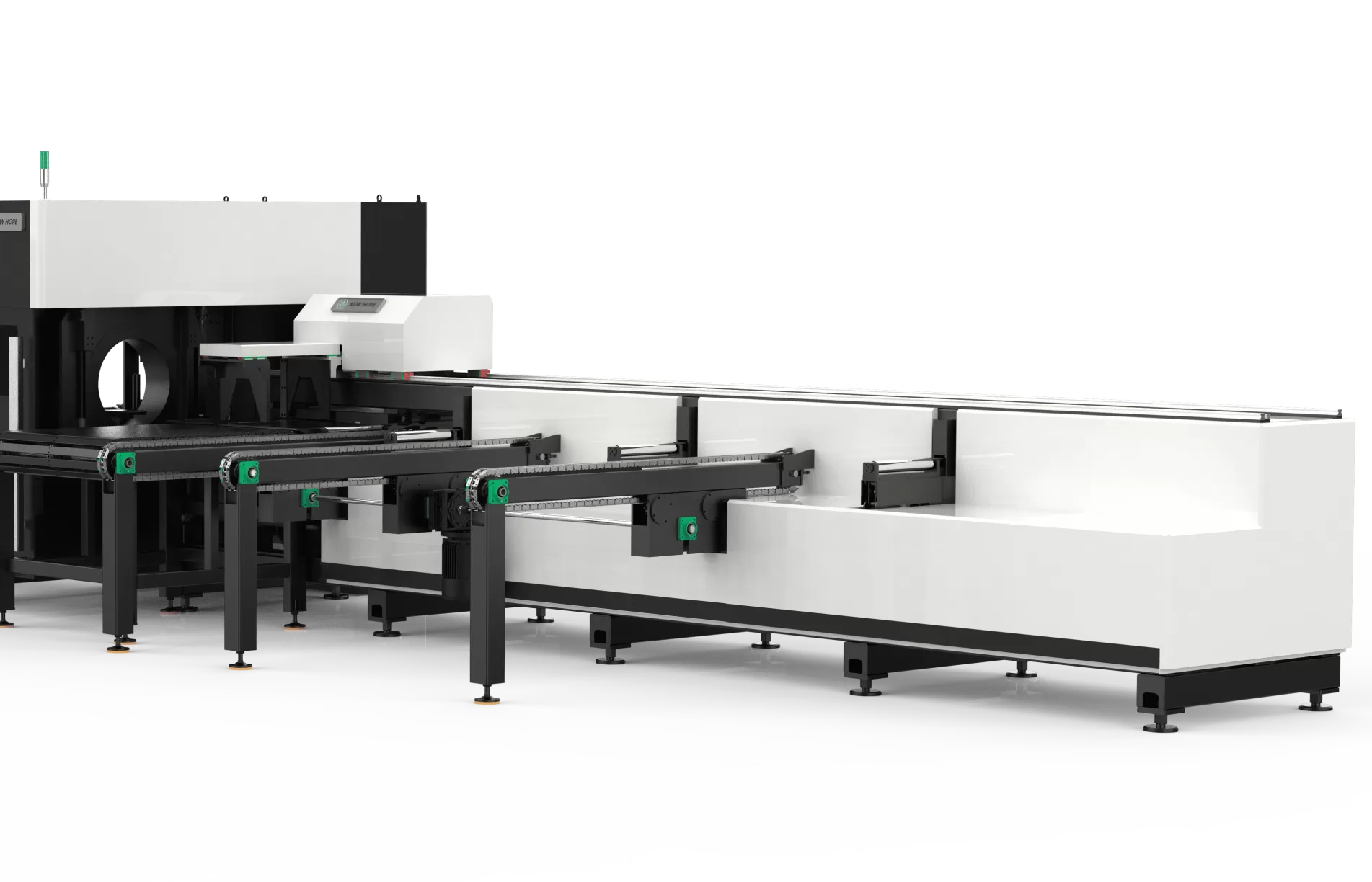

Semi-automatic unloading
The non-chuck pipe cutter with semi-automatic unloading offers easy operation—simplifying post-cut pipe removal without manual lifting. It balances efficiency and flexibility, adapting to diverse pipe sizes, reduces labor intensity, and ensures smooth workflow, ideal for small-batch, varied production.
Technical Parameter
| Machine model | 12036Q4 | 12055Q4 |
| Round tube diameter range | 25-350mm | 40-550mm |
| Square tube side length range | 25-350mm | 40-550mm |
| Maximum length of pipe | 12300mm | 12300mm |
| Maximum weight of a single pipe | 1300kg | 2000Kg |
| Chuck maximum speed | Manual/semi-automatic/fully automatic | Manual/semi-automatic/fully automatic |
| Max acceleration | 0.6G | 0.6G |
| Positioning accuracy | ±0.05mm/m | ±0.05mm/m |
| Repeat positioning accuracy | ±0.03mm | ±0.03mm |
| Adaptation power | 1500W-12000W | 1500W-12000W |
We provide flexible customization services to match your production requirements and brand positioning.
Customized Logo – Add your company logo on the machine body or control panel.
Customized Color – Machine color available according to your brand standard.
Customized Size – Adjustable working length, tube diameter range, and machine dimensions.
Customized Appearance – Tailored enclosure design and overall machine layout.
Customized Structure – Optional auto loading system, heavy-duty chuck, extended bed, etc.
Customized Function – Bevel cutting, special-shaped tube processing, smart control system, and other optional features.
OEM & ODM Supported.
Contact us to get your customized tube laser cutting solution.
Product Features
1. Cutting Power and Versatility：The 12036 Non - Chuck Laser Head Rotation Laser Tube Cutting Machine is equipped with a high - power laser source, typically ranging from 3000W to 30000W. This power enables it to cut various metal tubes, including stainless steel, carbon steel, and aluminum alloy. It can handle round, square, and rectangular tubes, suiting diverse industrial applications.
2. Laser Head Rotation Design：Unique in its design, the laser head rotates instead of using a traditional chuck. This allows for more flexible and precise cutting. The rotation mechanism enables seamless cutting of complex shapes and angles, such as bevel cuts up to ±45° (optional), without the limitations of a chuck - based system.
3. High - Precision Cutting：Featuring a positioning accuracy of ±0.05mm/m and a repeat positioning accuracy of ±0.02mm, this machine ensures high - precision results. Whether it's straight cuts or intricate patterns, the stable laser head movement and advanced control system guarantee smooth edges with minimal burrs, meeting strict manufacturing standards.
4. Efficient Feeding System：The semi - automatic feeding structure allows for easy loading of multiple tubes at once. Tubes are then automatically fed into the cutting area according to the set cutting speed. This not only saves time but also ensures a continuous cutting process, improving overall productivity.
5. Robust Bed Structure：Its side - mounted bed, often made of thick - walled steel plates, offers enhanced stability. After being welded, it undergoes annealing to relieve internal stress and secondary vibration aging treatment for precision machining. This reduces deformation and ensures reliable operation during high - speed cutting, even for long - term use.
The High-Precision Cutting Head Rotary Tube Laser Cutting Machine is designed for high-precision cutting of round, square, rectangular, and irregular tubes. With a rotary cutting head and multi-axis control, it enables bevel cutting, hole cutting, slotting, and complex contour processing in one setup. It is widely used in the following industries:
Structural tube cutting for buildings and factories
Truss and space frame components
Handrails, guardrails, and stair structures
Curtain wall support systems
Benefit: Accurate bevel cutting for easier welding and assembly, improving structural precision and installation efficiency.
Table and chair frames
Office furniture metal structures
Display racks and shelving systems
Stainless steel decorative tubes
Benefit: Smooth cutting edges with minimal post-processing, ideal for mass production.
Vehicle frame components
Mechanical equipment support structures
Agricultural machinery tubes
Engineering machinery structural parts
Benefit: High-precision cutting of complex holes and contours, enhancing assembly accuracy and productivity.
Gym equipment frames
Bicycle tube components
Stadium and sports facility structures
Benefit: Rotary cutting head enables multi-side processing without manual repositioning, reducing labor cost.
Pipeline structural components
Equipment support frames
Solar mounting system tubes
Benefit: Suitable for thick-wall and high-strength materials with stable, accurate performance.
Artistic metal tube structures
Hollow pattern cutting
Customized metal projects
Benefit: Supports complex graphic programming for personalized and creative designs.
Carbon steel
Stainless steel
Aluminum alloy
Galvanized steel
Alloy steel
Round tubes
Square tubes
Rectangular tubes
Oval tubes
Special-shaped tubes
Contact us now to get a customized High-Precision Cutting Head Rotary Tube Laser Cutting Machine solution and competitive quotation for your production needs.
