NH-1500H
H-Beam Laser Cutting Machine
1. Cutting Capacity：The H - beam laser cutting machine can handle a wide range of H - beams. It typically processes H - beams with a height (B) up to 450mm, width (H) up to 1000mm, and length (L) up to 26000mm (customizable). This large - scale processing ability makes it suitable for various industrial projects.
2. Powerful Laser Source：Equipped with high - power laser sources, usually 12000W, 20000W, or 30000W, it can quickly and accurately cut through thick - walled H - beams. The high power ensures efficient processing, reducing production time and cost.
3. Precision and Versatility：Featuring a positioning accuracy of ≤0.1mm and a cutting accuracy of ≤0.5mm, it offers high - precision cuts. It can perform multiple operations like cutting, drilling holes, opening grooves, beveling, and marking on H - beams. It also supports various welding node cutting processes, meeting diverse design requirements.
4. Advanced Control System：It often uses an advanced CNC system, such as a customized version developed from the German three - dimensional five - axis system. This system enables seamless import of 3D modeling data files from software like TEKLA, Solidworks, or Rhino, allowing for one - click cutting. Additionally, it has functions like automatic contour detection and centering to ensure accurate cutting.
5. High - Efficiency Design：Many models adopt a dual - station design, where one side is for cutting while the other is for loading materials. This allows for continuous 24 - hour operation. The automatic material - feeding and centering functions save a significant amount of time, enhancing overall production efficiency.
Processable materials and application industries
H-beam laser cutting machines handle various metals: carbon steel (low/high), stainless steel, aluminum alloys, galvanized steel, and copper alloys. They excel with H-beams, I-beams, channels, and other profiles, fitting construction, heavy industry, and rail sectors.

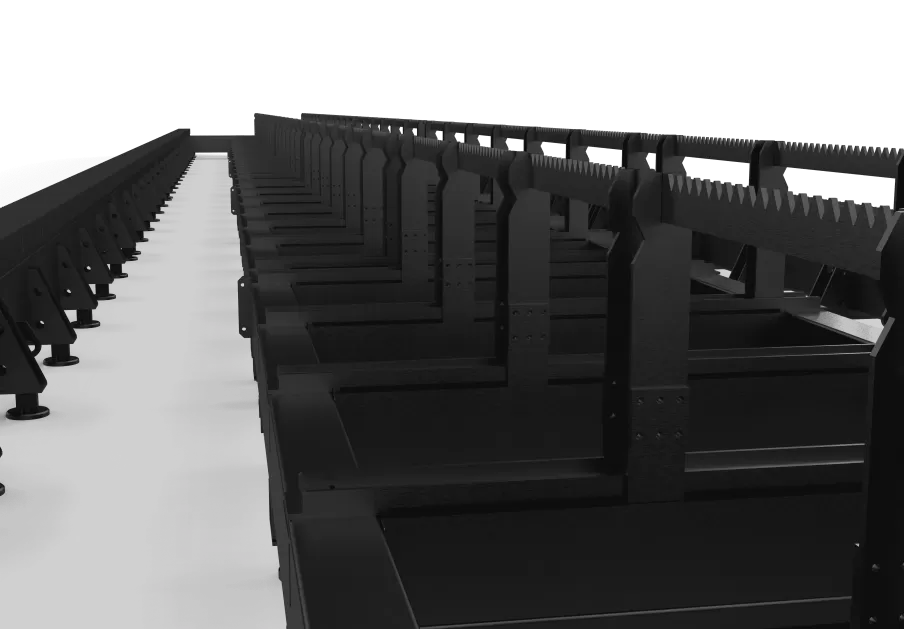

Bed structure advantages
The bed structure robust, modular design ensures high stability, minimizing vibration during cutting. The rigid framework provides precise alignment, enhancing cutting accuracy. H-Beam Laser Cutting Machine also allows easy installation and maintenance, and can adapt to long - length H - beam processing efficiently.
The gantry beam structure advantages
The gantry beam structure rigid design ensures high stability, minimizing deformation during high - speed cutting. The symmetrical layout distributes loads evenly, enhancing precision. H-Beam Laser Cutting Machine also allows smooth movement of the cutting head, enabling efficient and accurate processing of large H - steel workpieces.
Advantages of using plate welding bed
The bed uses plate welding. It offers high structural rigidity, effectively reducing vibration during cutting for precise processing. The welding ensures good load - bearing capacity, enabling stable handling of heavy H - beams. Also, it allows flexible design to fit machine dimensions and is cost - effective for mass production.

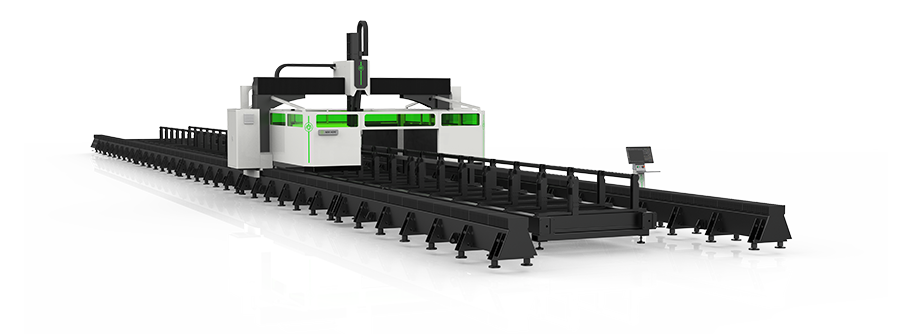

The H-Beam Laser Cutting Machine is a high-performance laser cutting system specifically designed for precise cutting of H-beams, I-beams, and other structural steel profiles. Equipped with advanced fiber laser technology and CNC control, this machine ensures accurate, fast, and smooth cuts for steel fabrication, construction, and heavy machinery industries.
Compared with traditional plasma or mechanical cutting methods, the H-beam laser cutting machine delivers high-quality edges, minimal deformation, and reduced secondary processing, helping manufacturers save time, reduce costs, and improve production efficiency.
High Precision Cutting for Structural Steel: With CNC-controlled positioning and fiber laser technology, the machine achieves ±0.5 mm cutting accuracy, ensuring precise and consistent results even for thick steel H-beams.
Fast and Efficient Production: Laser cutting speed is up to 15 meters per minute depending on beam thickness, greatly improving production efficiency. The non-contact process also reduces wear and tear, lowering operating costs.
Minimal Thermal Deformation: Unlike traditional flame or plasma cutting, the fiber laser delivers narrow kerf and minimal heat-affected zones (HAZ), preserving beam strength and reducing the need for secondary straightening or grinding.
Versatile Material Compatibility: This machine can cut H-beams, I-beams, channels, and other structural steel profiles of varying thicknesses, including carbon steel, stainless steel, and alloy steel.
Automated Operation & Safety: Integrated CNC control allows for automated cutting paths, reducing manual labor. Safety features include protective enclosures, emergency stop systems, and precision sensors to ensure safe operation.
Technical Parameter
| Machine model | 1500H |
| Processing material shape | I-beam, H-beam |
| Material size range | 600mmx300mm-1000mmx600mm |
| Processable material length | 6000-13500mm |
| Maximum weight of a single pipe | 6t |
| Max acceleration | 0.5g |
| Positioning accuracy | ±0.25mm/m |
| Repeat positioning accuracy | ±0.05mm |
| Adaptation power | 6000W-30000W |
Product Features
1. Cutting Capacity：The H - beam laser cutting machine can handle a wide range of H - beams. It typically processes H - beams with a height (B) up to 450mm, width (H) up to 1000mm, and length (L) up to 26000mm (customizable). This large - scale processing ability makes it suitable for various industrial projects.
2. Powerful Laser Source：Equipped with high - power laser sources, usually 12000W, 20000W, or 30000W, it can quickly and accurately cut through thick - walled H - beams. The high power ensures efficient processing, reducing production time and cost.
3. Precision and Versatility：Featuring a positioning accuracy of ≤0.1mm and a cutting accuracy of ≤0.5mm, it offers high - precision cuts. It can perform multiple operations like cutting, drilling holes, opening grooves, beveling, and marking on H - beams. It also supports various welding node cutting processes, meeting diverse design requirements.
4. Advanced Control System：It often uses an advanced CNC system, such as a customized version developed from the German three - dimensional five - axis system. This system enables seamless import of 3D modeling data files from software like TEKLA, Solidworks, or Rhino, allowing for one - click cutting. Additionally, it has functions like automatic contour detection and centering to ensure accurate cutting.
5. High - Efficiency Design：Many models adopt a dual - station design, where one side is for cutting while the other is for loading materials. This allows for continuous 24 - hour operation. The automatic material - feeding and centering functions save a significant amount of time, enhancing overall production efficiency.
Structural steel processing for construction projects
Prefabricated steel fabrication and assembly
Heavy machinery and industrial equipment manufacturing
Bridge and infrastructure steel components
Shipbuilding and large-scale steel structure production
This machine is ideal for industries requiring high-quality, precise, and efficient H-beam cutting. We provide tailored solutions based on H-beam size, steel thickness, production volume, and specific cutting requirements. Our technical team can offer a full proposal, machine configuration, and on-site support to optimize your production workflow.
Contact us today to request a quotation, technical consultation, or sample cutting test.
The H‑Beam Laser Cutting Machine is designed to cut structural steel profiles such as H‑beams, I‑beams, channel steel, and other steel sections made from carbon steel, stainless steel, galvanized steel, and various alloy steels. Its flexibility makes it suitable for heavy industry and steel structure fabrication environments.
Compared with plasma and flame cutting, a fiber laser H‑beam cutting solution offers much higher precision, cleaner cut edges, narrower kerf, and less heat‑affected zone (HAZ). This results in smoother surfaces, reduced secondary processing like grinding, and improved structural integrity of the beams.
Yes. Modern H‑beam laser cutting machines often support multiple functions beyond straight cutting, including hole cutting, notch cutting, bevel cutting, and marking. Some advanced systems can also integrate with software like Tekla or CAD for automated nesting and profile processing.
Structural steel fiber laser cutting machines typically offer high positioning accuracy and consistent repeatability. Many models achieve high‑precision cuts suitable for demanding fabrication tasks, often with positioning accuracies better than industry standards.
A dual‑station layout allows continuous loading/unloading on one side while cutting proceeds on the other, increasing operational efficiency and minimizing downtime. This design is commonly adopted in heavy‑duty H‑beam laser cutting machines to enhance productivity.
Yes. Most advanced H‑beam laser cutters integrate CNC control systems compatible with industry software, enabling seamless import of 3D models, automated contour detection, and optimized nesting. This reduces manual input and improves processing accuracy.
H‑Beam laser cutting machines are widely used in construction steel fabrication, bridge and infrastructure projects, heavy machinery manufacturing, shipbuilding, and other steel structure industries requiring precise and reliable cutting solutions.
When selecting a machine, consider factors such as maximum beam height, cutting thickness capability, laser power source, CNC control features, additional functions (like beveling or hole cutting), and required automation. Customization options are often available to meet specific production needs.
Yes. We offer technical consultation, sample cutting tests, and customized machine configurations based on your specific requirements, including beam dimensions, material type, processing speed, and production volume. Contact us to get a detailed proposal and quotation.
Our after‑sales support includes installation guidance, operator training, maintenance services, and technical troubleshooting to ensure your H‑Beam Laser Cutting Machine operates optimally and consistently delivers high‑quality results.
Call to Action
Related Products
FAQ
1.What's your warranty policy?
Answer:
The machine comes with a 2-3 years warranty for different laser sources, weprovide whole life free service for our machine and customers only need to payfor necessary parts&express costs for Out-of-Warranty Period.
2.How about your oversea service? What can I do if there is someproblem with my machine?
Answer:
Free training and technical support are always available for all customers Installation on-site or 7X24 online installation quidance is also provided.
3.How can I choose the most suitable machine?
Answer:
Please let us know the materials you want to proceed, with or what job you needto do with the machine, our sales will recommend machines with suitable configurations and solutions for all your production needs.
4.Do you offer OEM&ODM or customized service?
Answer:
OEM or ODM is welcomed. New Hope provide all kinds of solutions for automation, laser cutting/welding/cleaning, customized machines, and service for our esteemed customer. Our technology team together with our cooperated scientific institution&colleges and universities, provide our clients with more efficient, stable and cost-saving solutions.
5.Can we sell your machine in our country as a local agent?
Answer:
Yes, we will support our agents with training, installation, after-sales, and technical support service to ensure the well-use of each machine on the end-user's site.
