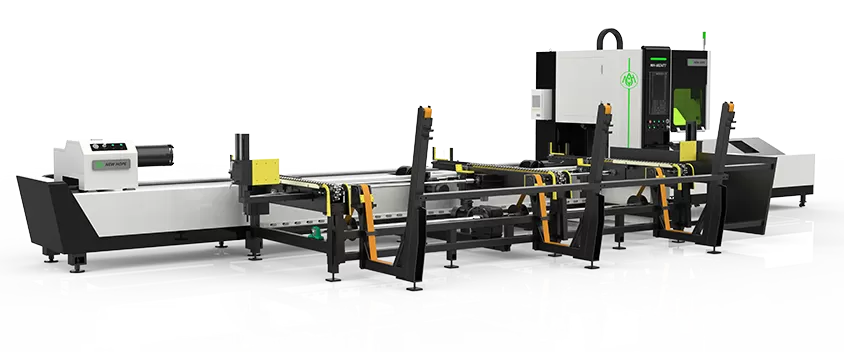

NH-6024T1D
Fully automatic feeding horizontal pipe cutting machine
The bed is welded with mortise and tenon joints
Bed structure
The high-strength tube machine tool body structure and precision manufacturing technology ensure the dynamic performance, operating accuracy and stability of the machine tool during work.

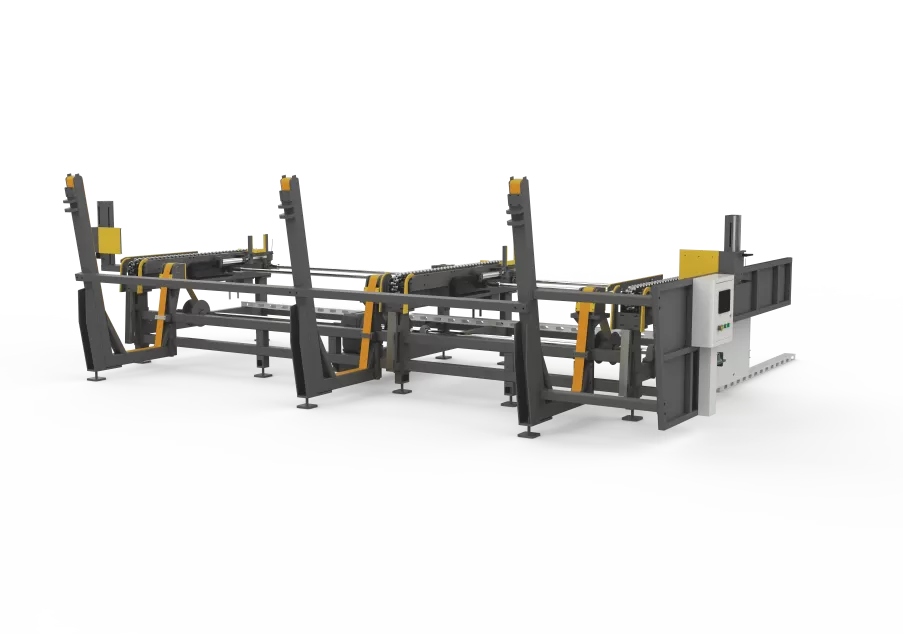

Automatic feeding rack
The fully automatic feeding rack can realize fully automatic loading, conveying, positioning and cutting of pipes without manual intervention throughout the process, greatly improving continuous production efficiency; it is compatible with pipes of multiple specifications, has high feeding accuracy, reduces manual errors, and reduces labor costs. It is suitable for large-scale, high-precision production needs and has both high efficiency and stability.
Follow-up support device
It is suitable for processing round and square tubes, channel steels, H-steels, I-beams, angle steels and other materials. It can sense the distance changes on the tube surface in real time and automatically adjust the height of the laser head to ensure stable focusing accuracy. It can adapt to tube bending, ovality errors and other situations to avoid cutting deviations. It reduces the frequency of manual calibration and improves the cutting efficiency and quality of complex pipe fittings. It is especially suitable for processing special-shaped tubes and thick-walled tubes, and enhances the adaptability and stability of the equipment.
Technical Parameter
| Machine model | 6012T1 | 6024T1 | 6036T1 |
| Round tube diameter range | 10-120mm | 10-230mm | 25-350mm |
| Square tube side length range | 10-120mm | 10-230mm | 25-350mm |
| Maximum length of pipe | 6300mm | 6300mm | 6300mm |
| Maximum weight of a single pipe | 100Kg | 300Kg | 660kg |
| Chuck maximum speed | 200r/min | 100r/min | 75r/min |
| Max acceleration | 1.5G | 1.5G | 1.5G |
| Positioning accuracy | ±0.05mm/m | ±0.05mm/m | ±0.05mm/m |
| Repeat positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Adaptation power | 1500W-6000W | 1500W-6000W | 1500W-6000W |
Product Features
1. The bed is welded with mortise and tenon joints, the structure is more stable, the cutting pipe does not deform, and the cutting accuracy of the equipment is guaranteed.
2. Extremely simple style. The equipment is small and exquisite, the whole machine occupies a small area, and is not limited by the site.
3. The square hole design has a wide range of pipe applications, and the eight-cylinder support has a strong support force and does not fall off the pipe.
4. Equipped with full/semi-automatic loading, compact design, high cost performance, improved production efficiency, and reduced labor costs.
5. Automated material receiving table design, intelligent production, and improved pipe utilization.
6. Integrated design, laser, electric cabinet and fuselage synthesis.
7. Widely used in military industry, aerospace, textile machinery, medical equipment, fitness equipment, auto parts, petrochemical machinery, agricultural machinery, production lines, other civil machinery and other fields.
Call to Action
FAQ
1.What's your warranty policy?
Answer:
The machine comes with a 2-3 years warranty for different laser sources, weprovide whole life free service for our machine and customers only need to payfor necessary parts&express costs for Out-of-Warranty Period.
2.How about your oversea service? What can I do if there is someproblem with my machine?
Answer:
Free training and technical support are always available for all customers Installation on-site or 7X24 online installation quidance is also provided.
3.How can I choose the most suitable machine?
Answer:
Please let us know the materials you want to proceed, with or what job you needto do with the machine, our sales will recommend machines with suitable configurations and solutions for all your production needs.
4.Do you offer OEM&ODM or customized service?
Answer:
OEM or ODM is welcomed. New Hope provide all kinds of solutions for automation, laser cutting/welding/cleaning, customized machines, and service for our esteemed customer. Our technology team together with our cooperated scientific institution&colleges and universities, provide our clients with more efficient, stable and cost-saving solutions.
5.Can we sell your machine in our country as a local agent?
Answer:
Yes, we will support our agents with training, installation, after-sales, and technical support service to ensure the well-use of each machine on the end-user's site.
