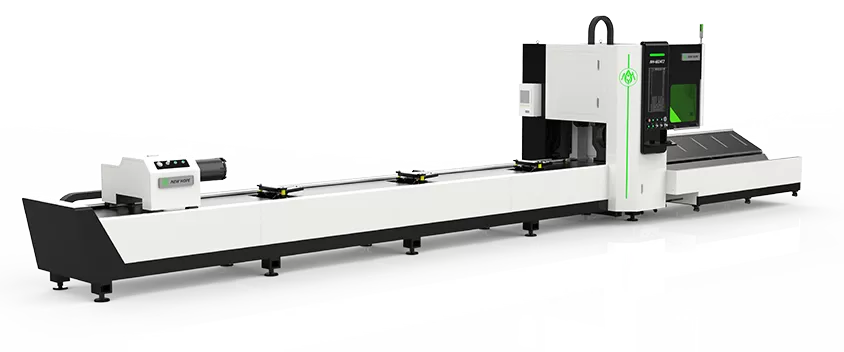

NH-6024T2
Square tube pipe cutting machine
The horizontal 6024 tube cutting machine is a laser tube cutting equipment, which is usually equipped with 1500W-20000W laser power and can cut Φ10-240mm round tubes. It generally adopts a horizontal bed and is equipped with a pneumatic chuck. It has the characteristics of high cutting accuracy and high efficiency, and is suitable for cutting a variety of tubes.
Bed structure
The high-strength tube machine tool body structure and precision manufacturing technology ensure the dynamic performance, operating accuracy and stability of the machine tool during work.

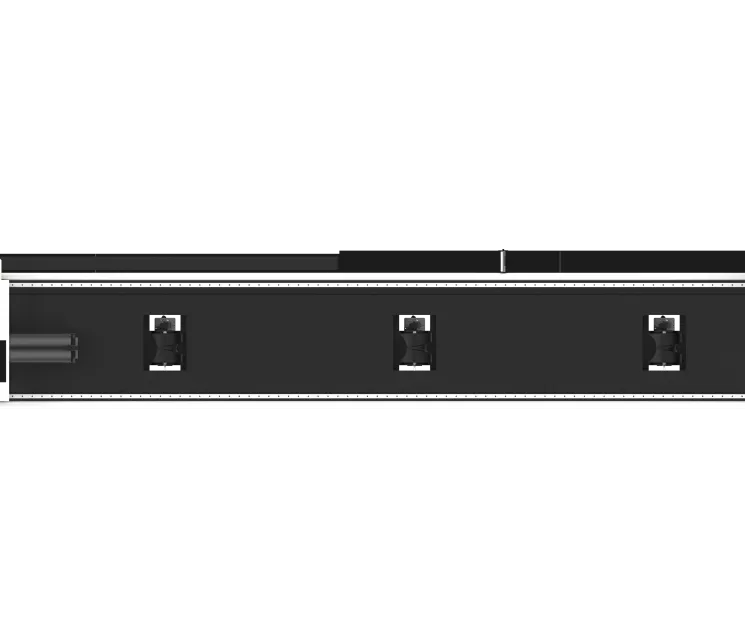

Nylon wheel support
Its non-abrasive surface prevents scratches on pipes, preserving surface quality. High wear resistance ensures long service life, reducing replacement frequency. The material's inherent elasticity absorbs vibrations, enhancing cutting stability and precision. Lightweight yet sturdy, it minimizes friction, aiding smooth pipe feeding—ideal for protecting delicate or finished pipe surfaces.

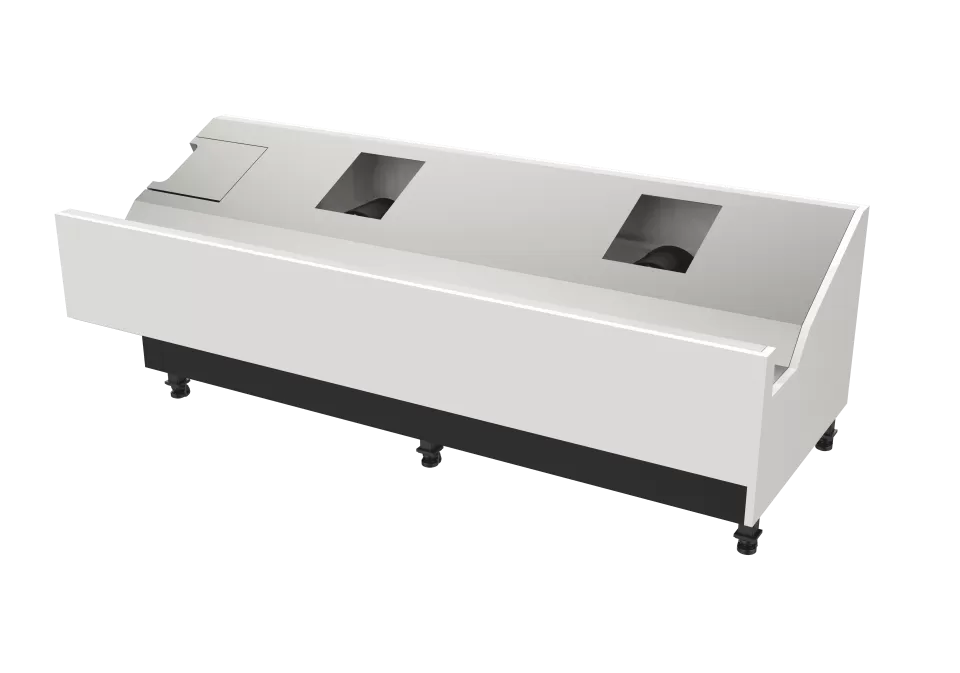

Material receiving table
It efficiently collects cut pipes, preventing collisions and scratches to ensure workpiece integrity. With adjustable spacing, it adapts to various pipe lengths. Its stable structure reduces noise and vibration, boosting operational safety. Automating material collection cuts labor costs and enhances workflow continuity, ideal for mass production.
Technical Parameter
| Machine model | 6024T2 | 6036T2 | 12036T2 |
| Round tube diameter range | 10-230mm | 25-350mm | 25-350mm |
| Square tube side length range | 10-230mm | 25-350mm | 25-350mm |
| Maximum length of pipe | 6300mm | 6300mm | 12300mm |
| Maximum weight of a single pipe | 300Kg | 660kg | 1300kg |
| Chuck maximum speed | 100r/min | 75r/min | 75r/min |
| Max acceleration | 1.5G | 1.5G | 1.0G |
| Positioning accuracy | ±0.05mm/m | ±0.05mm/m | ±0.05mm/m |
| Repeat positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Adaptation power | 1500W-6000W | 1500W-6000W | 1500W-6000W |
Product Features
1. Segmented servo support, three-sided rollers, support according to the running track of the pipe without damaging the pipe.
2. Double card movement, the front chuck can move forward to avoid the problem of sagging of the pipe supported by the rear card and ensure the stability of cutting.
3. Humanized design, highly integrated electrical cabinet and laser, small footprint, reasonable matching factory layout.
4. Self-selection, can choose the configuration according to actual needs, high cost performance.
5. There are many types of cutting pipes, suitable for a variety of working conditions, and complex graphics can be easily resolved.
6. The bed body is welded with mortise and tenon joints, the structure is more stable, the cutting pipe is not deformed, and the cutting accuracy of the equipment is guaranteed.
7. It is widely used in military industry, aerospace, textile machinery, medical equipment, fitness equipment, auto parts, petrochemical machinery, agricultural machinery, production lines, other civil machinery and other fields.
Call to Action
FAQ
1.What's your warranty policy?
Answer:
The machine comes with a 2-3 years warranty for different laser sources, weprovide whole life free service for our machine and customers only need to payfor necessary parts&express costs for Out-of-Warranty Period.
2.How about your oversea service? What can I do if there is someproblem with my machine?
Answer:
Free training and technical support are always available for all customers Installation on-site or 7X24 online installation quidance is also provided.
3.How can I choose the most suitable machine?
Answer:
Please let us know the materials you want to proceed, with or what job you needto do with the machine, our sales will recommend machines with suitable configurations and solutions for all your production needs.
4.Do you offer OEM&ODM or customized service?
Answer:
OEM or ODM is welcomed. New Hope provide all kinds of solutions for automation, laser cutting/welding/cleaning, customized machines, and service for our esteemed customer. Our technology team together with our cooperated scientific institution&colleges and universities, provide our clients with more efficient, stable and cost-saving solutions.
5.Can we sell your machine in our country as a local agent?
Answer:
Yes, we will support our agents with training, installation, after-sales, and technical support service to ensure the well-use of each machine on the end-user's site.
