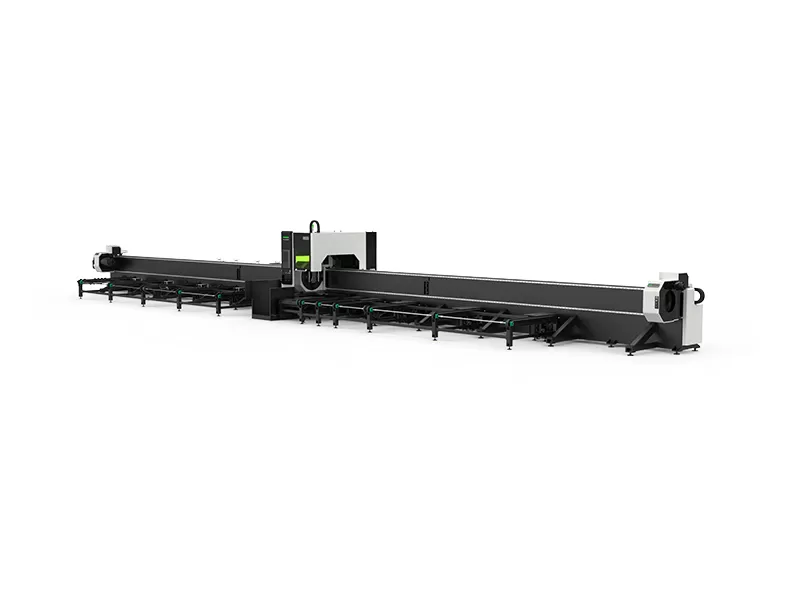

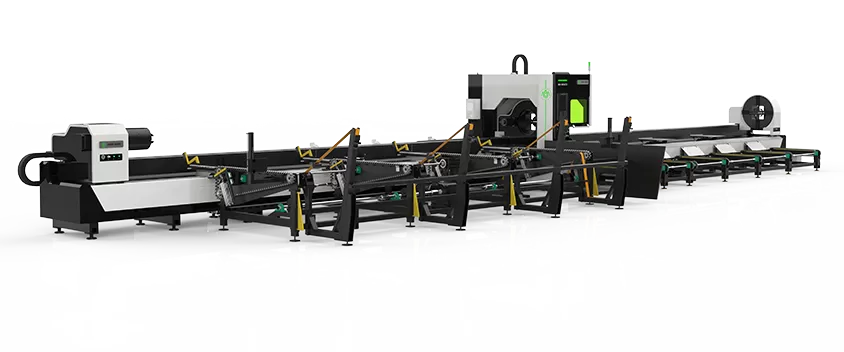

NH-6036T3D
Horizontal large tube fully automatic feeding cutting machine
Whole pipe cutting to meet the needs of long workpiece processing and diversified production.

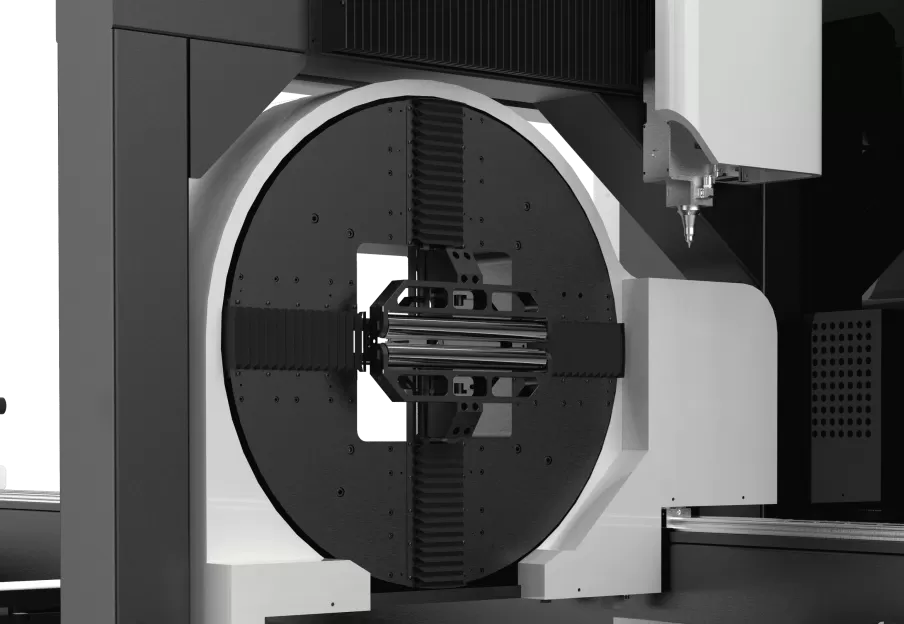

Precision chuck advantages
The precision chuck of the 360mm laser pipe cutter delivers secure clamping to prevent slippage during cutting, ensures high concentricity to minimize runout for enhanced accuracy on large-diameter, long pipes, offers adjustable force to suit diverse materials without deformation, features wear-resistant components for long service life, and reduces surface damage—boosting efficiency and quality in heavy-duty operations.

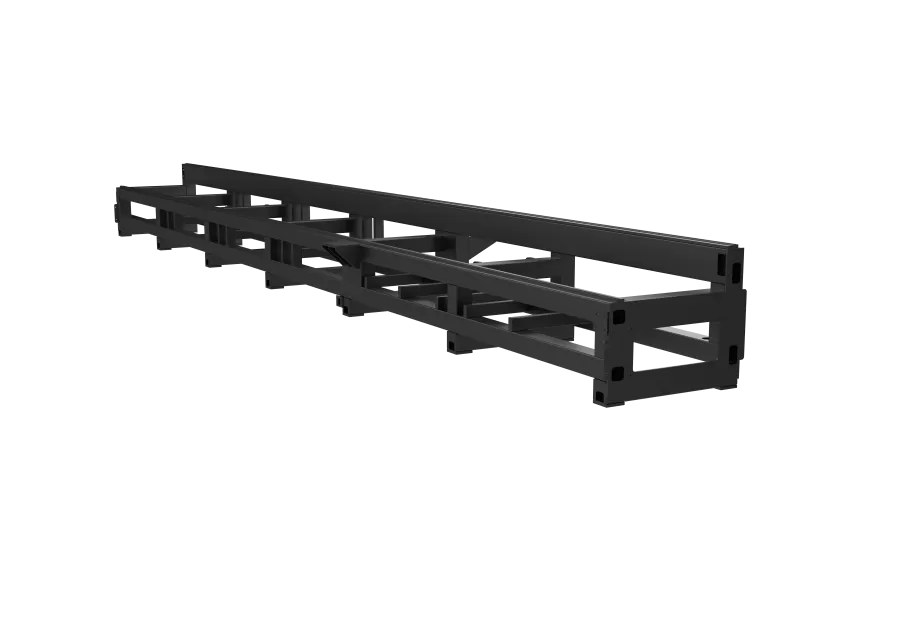

Bed structure advantages
The bed structure features a robust, modular framework. Its all - steel construction ensures high rigidity and stability, minimizing vibration during cutting for precision. The open - frame design allows easy material loading/unloading and maintenance, while the uniform force distribution extends service life, boosting operational efficiency.

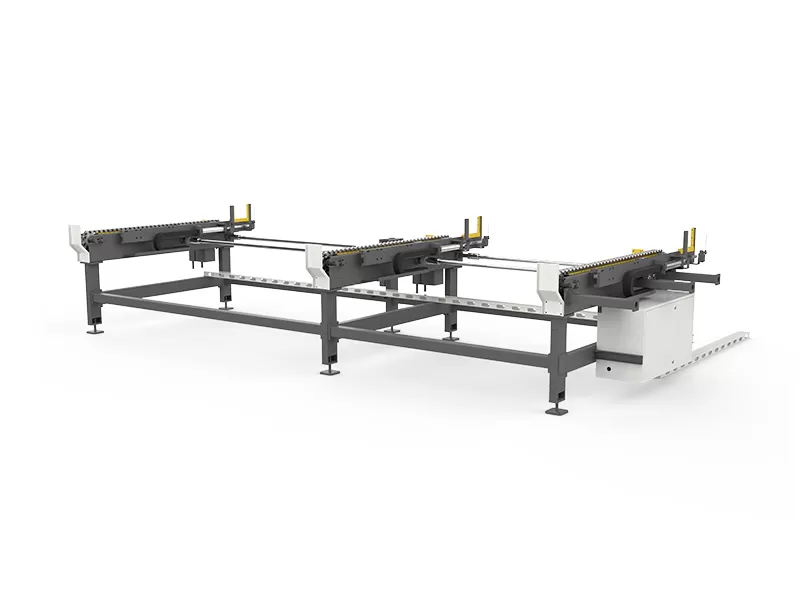

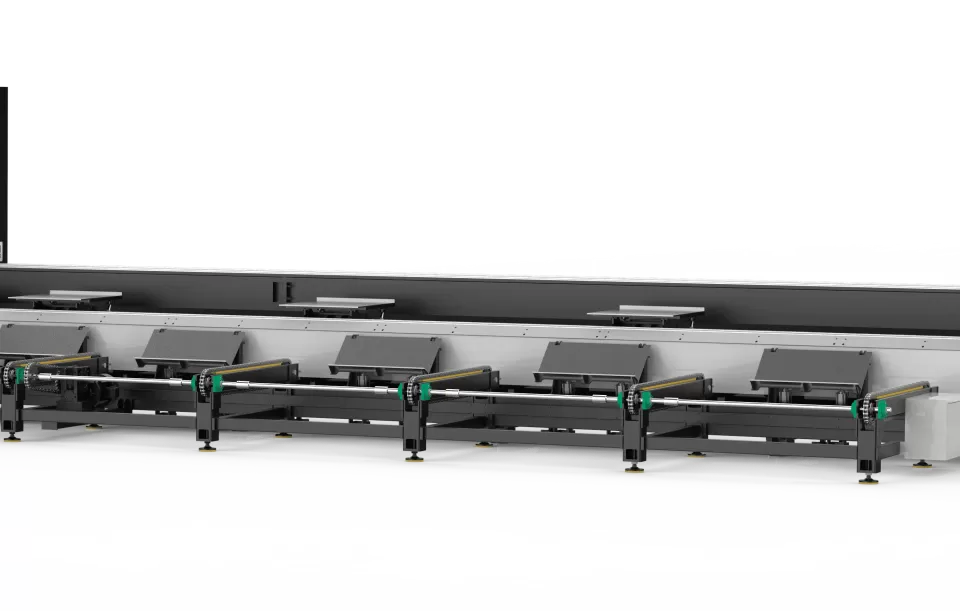

Feeding follow-up and semi-automatic feeding
The laser pipe cutter with servo material pushing and semi-automatic unloading offers key advantages: servo-driven pushing ensures precise, stable pipe feeding for consistent cutting accuracy; semi-automatic unloading balances automation efficiency with flexible manual control, adapting to varied batch sizes; together, they reduce labor intensity, minimize material handling errors, and enhance workflow continuity, ideal for medium to large-scale production needs.
Technical Parameter
| Machine model | 7024T3 | 9036T3 | 12036T3 |
| Round tube diameter range | 10-230mm | 25-350mm | 25-350mm |
| Square tube side length range | 10-230mm | 25-350mm | 25-350mm |
| Maximum length of pipe | 7300mm | 9300mm | 12300mm |
| Maximum weight of a single pipe | 300Kg | 1000kg | 1300kg |
| Chuck maximum speed | 100r/min | 75r/min | 75r/min |
| Max acceleration | 1.2G | 1.0G | 1.0G |
| Positioning accuracy | ±0.05mm/m | ±0.05mm/m | ±0.05mm/m |
| Repeat positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Adaptation power | 1500W-6000W | 1500W-6000W | 1500W-6000W |
Product Features
1. Whole pipe cutting to meet the needs of long workpiece processing and diversified production.
2. Segmented servo support, three-sided rollers, support according to the running trajectory of the pipe without damaging the pipe.
3. Equipped with a pipe library, no need for secondary programming, high efficiency and energy saving, can meet the needs of various types of pipes such as round pipes, square pipes, rectangular pipes, and special-shaped pipes.
4. Bus control system, overall intelligent control of three-chuck feeding and cutting functions, human-machine intelligence, follow-up sensing and path avoidance algorithm, improve the safety level of equipment use.
5. Widely used in military industry, aerospace, textile machinery, medical equipment, fitness equipment, auto parts, petrochemical machinery, agricultural machinery, production lines, other civil machinery and other fields.
