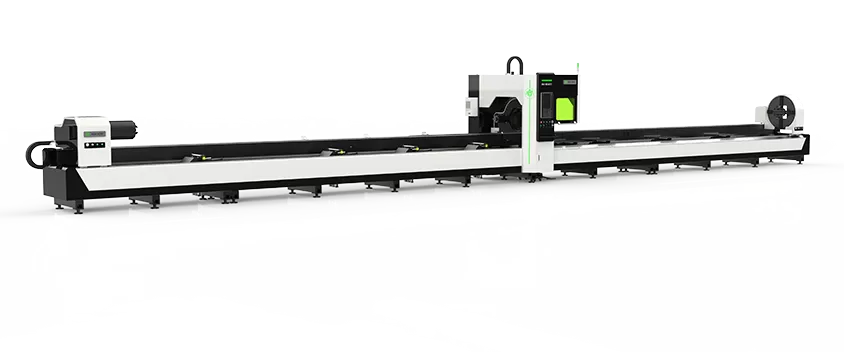

NH-9036T3
Horizontal high precision pipe cutting machine
1. This laser tube cutting machine features a specification of 9000*360mm, enabling it to handle long tubes up to 9 meters in length and with a maximum diameter of 360mm, suitable for various industrial pipe processing needs.
2. Adopting a horizontal bed structure, the machine ensures stable and precise tube positioning during cutting, reducing gravitational interference on long workpieces and enhancing overall processing accuracy.
3. The horizontal design facilitates convenient loading and unloading of tubes, allowing for efficient material handling and improving workflow continuity in mass production scenarios.
4. With its robust horizontal bed, the machine exhibits strong rigidity, effectively absorbing cutting vibrations and ensuring consistent cutting quality even during high-speed or heavy-duty operations.
5. This 9000*360mm horizontal laser tube cutter combines large processing capacity with stable structural performance, making it ideal for applications in construction, automotive, and machinery manufacturing industries.

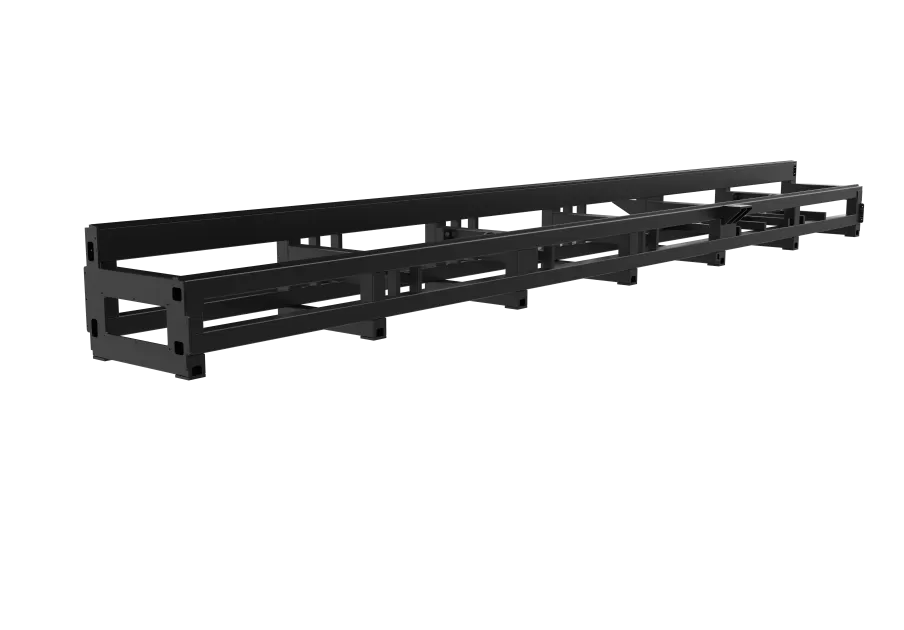

Bed structure
The horizontal bed structure ensures stable positioning of long tubes, minimizes gravitational impact on accuracy, simplifies loading/unloading for efficient workflow, enhances rigidity to reduce cutting vibrations, and maintains consistent quality even in high-speed, heavy-duty operations, ideal for large-scale industrial use.

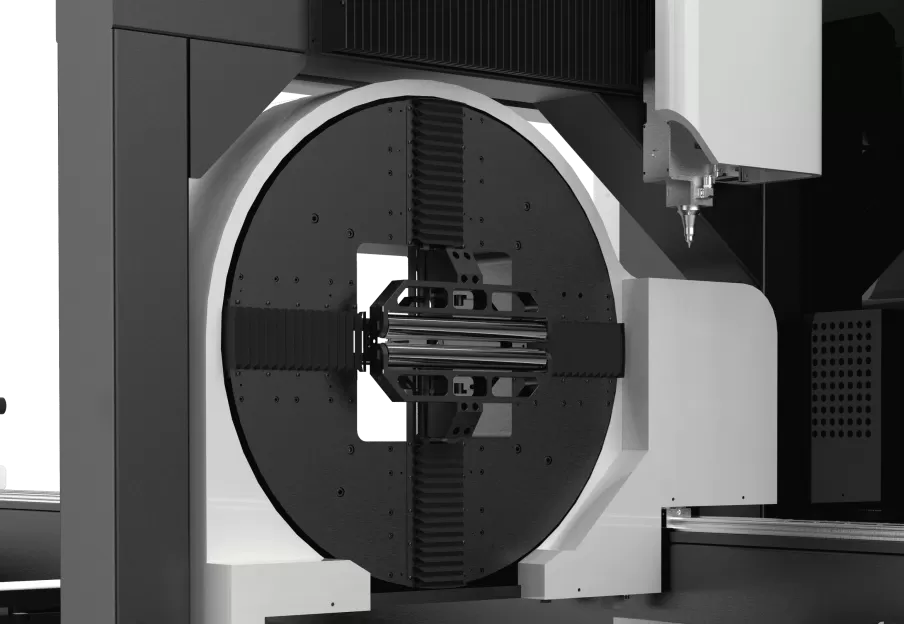

Precision chuck advantages
The precision chuck of the 360mm laser pipe cutter delivers secure clamping to prevent slippage during cutting, ensures high concentricity to minimize runout for enhanced accuracy on large-diameter, long pipes, offers adjustable force to suit diverse materials without deformation, features wear-resistant components for long service life, and reduces surface damage—boosting efficiency and quality in heavy-duty operations.

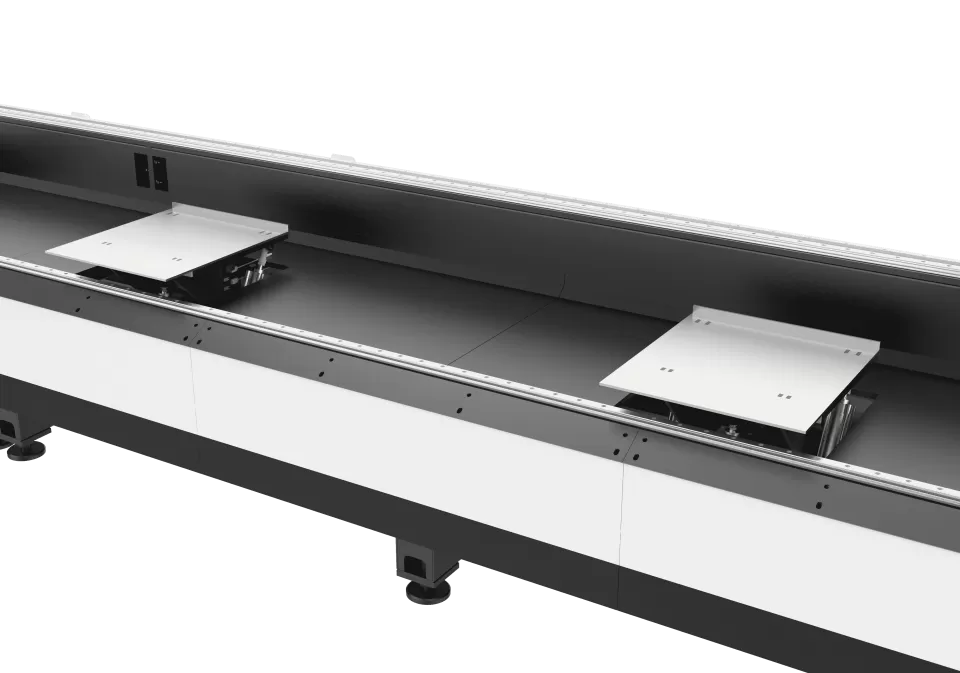

Follow-up support unloading
The follow-up cutting support system offers notable advantages: it dynamically adjusts to tube movement during cutting, ensuring stable support for long workpieces to prevent sagging or deformation, enhances cutting precision by minimizing vibrations, simplifies handling of heavy/long tubes, and boosts workflow efficiency by enabling continuous, uninterrupted processing.
Technical Parameter
| Machine model | 7024T3 | 9036T3 | 12036T3 |
| Round tube diameter range | 10-230mm | 25-350mm | 25-350mm |
| Square tube side length range | 10-230mm | 25-350mm | 25-350mm |
| Maximum length of pipe | 7300mm | 9300mm | 12300mm |
| Maximum weight of a single pipe | 300Kg | 1000kg | 1300kg |
| Chuck maximum speed | 100r/min | 75r/min | 75r/min |
| Max acceleration | 1.2G | 1.0G | 1.0G |
| Positioning accuracy | ±0.05mm/m | ±0.05mm/m | ±0.05mm/m |
| Repeat positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Adaptation power | 1500W-6000W | 1500W-6000W | 1500W-6000W |
Product Features
1. The laser tube cutting machine features a specification of 9000*360mm, enabling it to handle long tubes up to 9 meters in length and with a maximum diameter of 360mm, suitable for various industrial pipe processing needs.
2. Adopting a horizontal bed structure, the machine ensures stable and precise tube positioning during cutting, reducing gravitational interference on long workpieces and enhancing overall processing accuracy.
3. The horizontal design facilitates convenient loading and unloading of tubes, allowing for efficient material handling and improving workflow continuity in mass production scenarios.
4. With its robust horizontal bed, the machine exhibits strong rigidity, effectively absorbing cutting vibrations and ensuring consistent cutting quality even during high-speed or heavy-duty operations.
5. The 9000*360mm horizontal laser tube cutter combines large processing capacity with stable structural performance, making it ideal for applications in construction, automotive, and machinery manufacturing industries.
Call to Action
FAQ
1.What's your warranty policy?
Answer:
The machine comes with a 2-3 years warranty for different laser sources, weprovide whole life free service for our machine and customers only need to payfor necessary parts&express costs for Out-of-Warranty Period.
2.How about your oversea service? What can I do if there is someproblem with my machine?
Answer:
Free training and technical support are always available for all customers Installation on-site or 7X24 online installation quidance is also provided.
3.How can I choose the most suitable machine?
Answer:
Please let us know the materials you want to proceed, with or what job you needto do with the machine, our sales will recommend machines with suitable configurations and solutions for all your production needs.
4.Do you offer OEM&ODM or customized service?
Answer:
OEM or ODM is welcomed. New Hope provide all kinds of solutions for automation, laser cutting/welding/cleaning, customized machines, and service for our esteemed customer. Our technology team together with our cooperated scientific institution&colleges and universities, provide our clients with more efficient, stable and cost-saving solutions.
5.Can we sell your machine in our country as a local agent?
Answer:
Yes, we will support our agents with training, installation, after-sales, and technical support service to ensure the well-use of each machine on the end-user's site.
