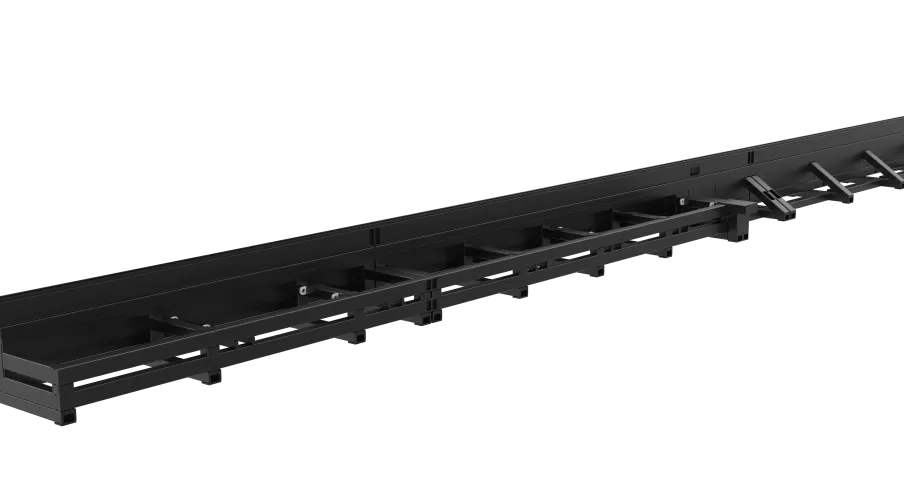

Bed structure
Its side - hung welded bed, often in a triangular design, offers enhanced stability. The chuck's center lies outside the bed's main body, facilitating easy and reliable loading. The bed is made of thick - walled steel plates, ensuring high rigidity. After being welded, it undergoes annealing to remove internal stress, followed by secondary vibration aging treatment for precision machining. This process effectively reduces deformation, guaranteeing stable and accurate cutting over long - term use.

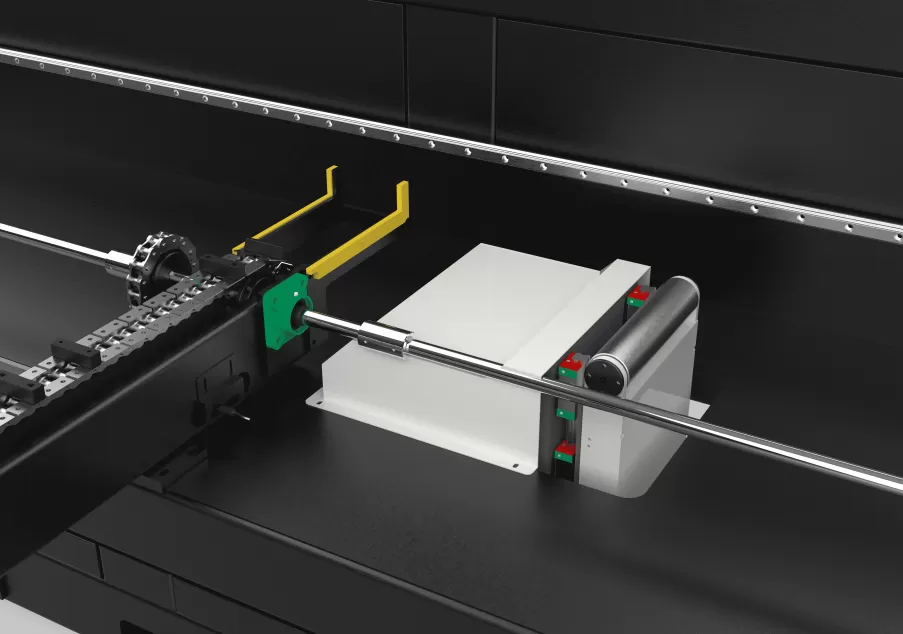

Follow-up device
For some non-standard shaped or curved pipes, the follow-up support can adaptively fit the pipe surface and provide uniform support force, ensuring that the pipe is always in the ideal cutting position during the cutting process, which helps to improve cutting accuracy.

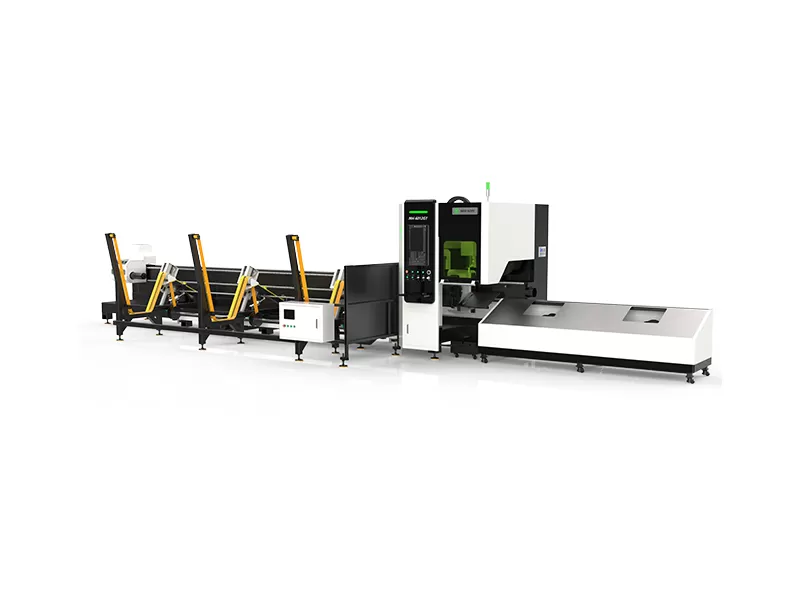

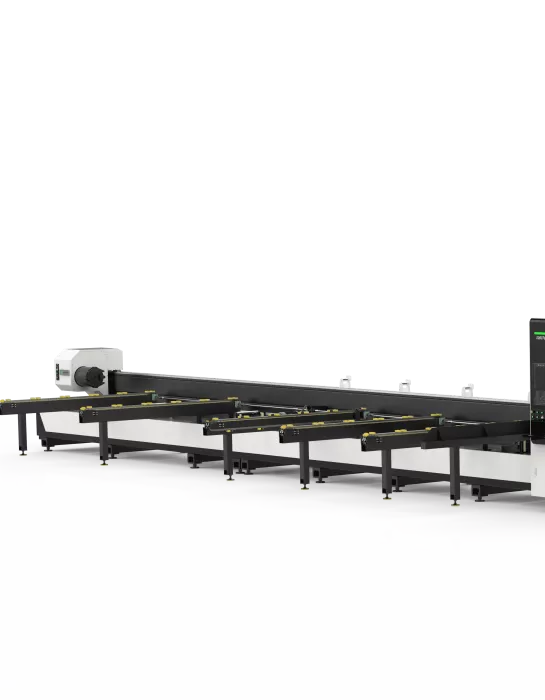

Semi-automatic feeding rack
It handles various pipe types/sizes without complex adjustments. Operators load batches easily; the system feeds steadily per cutting rhythm, balancing efficiency and control. Lower cost than full-auto, ideal for small-batch, diverse production needs.
Technical Parameter
| Machine model | 12036G3 | 12055G3 | 12069G3 |
| Round tube diameter range | 25-350mm | 40-550mm | 50-650mm |
| Square tube side length range | 25-350mm | 40-550mm | 50-450mm |
| Maximum length of pipe | 12300mm | 12300mm | 12300mm |
| Maximum weight of a single pipe | 1300kg | 2000Kg | 2200kg |
| Chuck maximum speed | 75r/min | 25r/min | 25r/min |
| Max acceleration | 1.0G | 0.4G | 0.3G |
| Positioning accuracy | ±0.05mm/m | ±0.05mm/m | ±0.05mm/m |
| Repeat positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Adaptation power | 1500W-12000W | 1500W-12000W | 1500W-12000W |

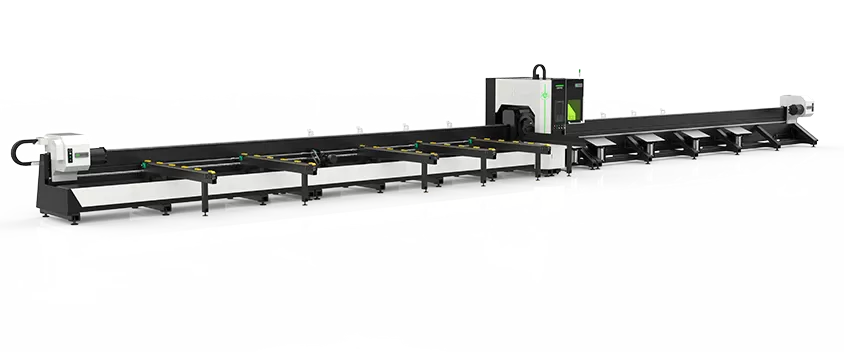

Product Features
Cutting Power: The 12037 Side - Mounted Laser Tube Cutting Machine is equipped with a high - power laser source, typically ranging from 3000W to 12000W. This high power enables it to quickly and precisely cut through thick - walled pipes, ensuring efficient processing.
Cutting Range**: It can handle a wide range of pipe diameters. The effective cutting diameter for round pipes usually spans from φ20mm to φ350mm, while for square pipes, it can process sizes within a certain range. Also, it is suitable for pipes up to 12 meters in length, meeting the needs of various industries.
Clamping and Stability**: The machine features a pneumatic chuck with a stable clamping force. It can firmly hold heavy pipes without loosening or slipping during cutting, and can also clamp light and thin pipes without causing deformation. Additionally, an intelligent floating support system helps keep the pipes stable during high - speed rotation.
Cutting Precision: With a positioning accuracy of ±0.03mm and a repeat positioning accuracy of ±0.02mm, this laser tube cutting machine can achieve high - precision cutting. Whether it's straight cutting, bevel cutting, or complex shape cutting, it can ensure smooth cutting edges with minimal burrs.
Operation and Loading: It offers a semi - automatic loading structure (fully - automatic loading is optional). Multiple pipes can be placed at the same time, and they are automatically fed into the chuck according to the cutting speed. The operation interface is user - friendly, allowing operators to easily set parameters and start the cutting process.
