NH-12055G4

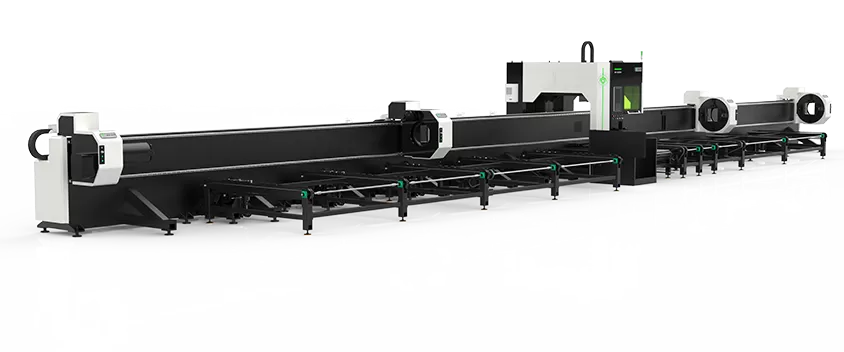

Side-mounted semi-automatic loading and unloading large tube cutting machine
1. Cutting Power and Range：The 12055 Side - Mounted Laser Tube Cutting Machine comes with a powerful laser source, typically ranging from 3000W to 12000W, enabling it to cut through a wide variety of metal tubes. It can handle round pipes with diameters from φ20mm to φ350mm and square pipes within a suitable size range. Pipes up to 12 meters long can be processed, suiting diverse industrial needs. 2. Side - Mounted Structure Advantage：Its side - mounted bed structure offers distinct benefits. With the chuck's center outside the main bed body, loading is made easy and reliable. The side - hung welded bed, often in a triangular design, provides enhanced stability. This design also reduces the risk of debris falling onto the guide rails, thus extending their lifespan. 3. Clamping and Support System：Equipped with a pneumatic chuck, it ensures stable clamping. The chuck can firmly hold heavy pipes without slippage and gently grip light, thin pipes without deformation. Additionally, an intelligent floating support system is installed. Three independent servo - controlled supports effectively reduce vibration and errors during the cutting process, ensuring high - precision results. 4. Cutting Precision：Boasting a positioning accuracy of ±0.03mm and a repeat positioning accuracy of ±0.02mm, this machine guarantees high - precision cuts. Whether for straight, bevel, or complex - shape cutting, it delivers smooth edges with minimal burrs. It can precisely execute various cutting tasks, meeting the strict requirements of high - end manufacturing. 5. Semi - automatic Feeding (Optional Automatic)：The semi - automatic feeding structure allows multiple pipes to be placed simultaneously. Pipes are automatically fed into the chuck according to the cutting speed, saving time and effort. For higher production demands, an automatic feeding option is available, further improving efficiency and reducing labor intensity.

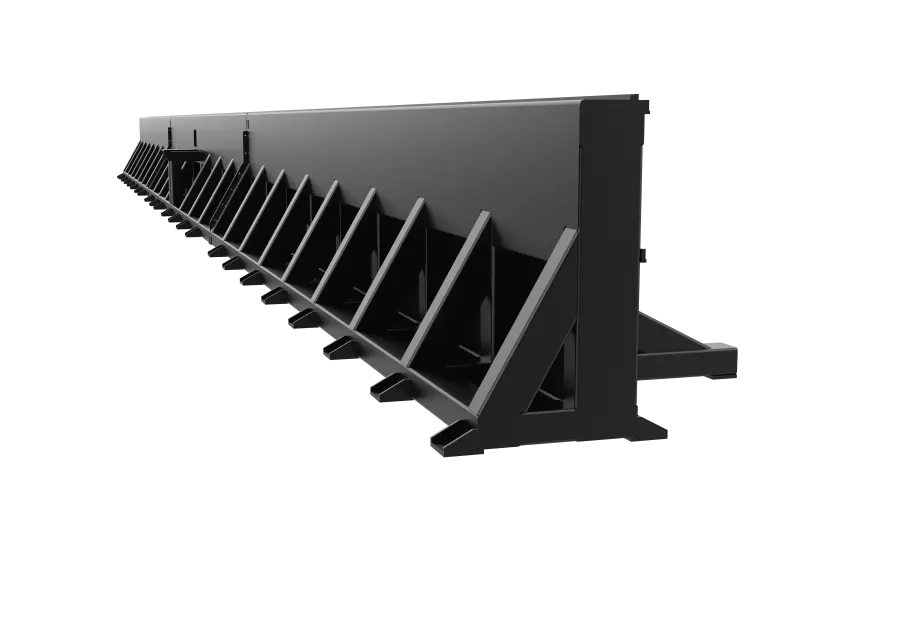

Bed structure
Follow-up device
For some non-standard shaped or curved pipes, the follow-up support can adaptively fit the pipe surface and provide uniform support force, ensuring that the pipe is always in the ideal cutting position during the cutting process, which helps to improve cutting accuracy.

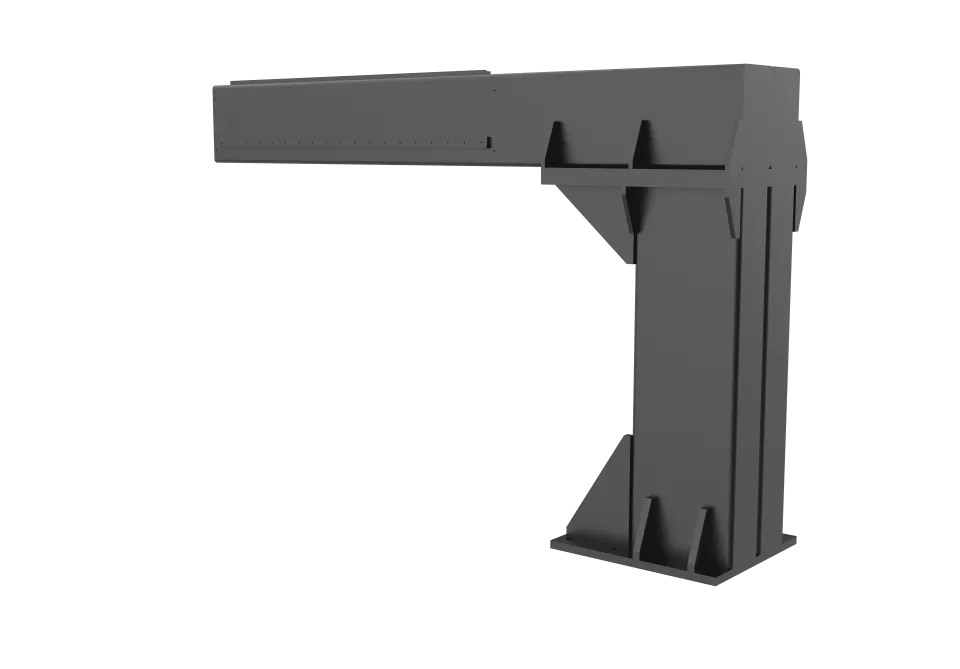

Advantages of beam structure
Machine's crossbeam structure has distinct advantages. It often uses a high - strength aluminum alloy material, which is lightweight yet rigid. This design not only reduces the overall weight of the machine but also effectively minimizes vibration during high - speed operation.The crossbeam's layout allows for a larger working range, enabling seamless cutting of various - sized pipes. With a stable and robust crossbeam, the laser head can move precisely, ensuring high - precision cuts.
Technical Parameter
| Machine model | 12036G4 | 12055G4 |
| Round tube diameter range | 25-350mm | 40-550mm |
| Square tube side length range | 25-350mm | 40-550mm |
| Maximum length of pipe | 12300mm | 12300mm |
| Maximum weight of a single pipe | 1300kg | 2000Kg |
| Chuck maximum speed | 75r/min | 25r/min |
| Max acceleration | 1.0G | 0.4G |
| Positioning accuracy | ±0.05mm/m | ±0.05mm/m |
| Repeat positioning accuracy | ±0.03mm | ±0.03mm |
| Adaptation power | 1500W-12000W | 1500W-12000W |
Product Features
Cutting Power and Range：The 12055 Side - Mounted Laser Tube Cutting Machine comes with a powerful laser source, typically ranging from 3000W to 30000W, enabling it to cut through a wide variety of metal tubes. It can handle round pipes with diameters from φ20mm to φ550mm and square pipes within a suitable size range. Pipes up to 12 meters long can be processed, suiting diverse industrial needs.
Side - Mounted Structure Advantage：Its side - mounted bed structure offers distinct benefits. With the chuck's center outside the main bed body, loading is made easy and reliable. The side - hung welded bed, often in a triangular design, provides enhanced stability. This design also reduces the risk of debris falling onto the guide rails, thus extending their lifespan.
Clamping and Support System：Equipped with a pneumatic chuck, it ensures stable clamping. The chuck can firmly hold heavy pipes without slippage and gently grip light, thin pipes without deformation. Additionally, an intelligent floating support system is installed. Three independent servo - controlled supports effectively reduce vibration and errors during the cutting process, ensuring high - precision results.
Cutting Precision：Boasting a positioning accuracy of ±0.03mm and a repeat positioning accuracy of ±0.02mm, this machine guarantees high - precision cuts. Whether for straight, bevel, or complex - shape cutting, it delivers smooth edges with minimal burrs. It can precisely execute various cutting tasks, meeting the strict requirements of high - end manufacturing.
Semi - automatic Feeding (Optional Automatic)：The semi - automatic feeding structure allows multiple pipes to be placed simultaneously. Pipes are automatically fed into the chuck according to the cutting speed, saving time and effort. For higher production demands, an automatic feeding option is available, further improving efficiency and reducing labor intensity.
