How to calibrate for different material thicknesses and diameters?

When using a Plate and Tube Cutting Machine, one of the most pressing concerns among users is calibrating for varying material thicknesses and diameters. Many operators report difficulties, particularly when transitioning from thin materials like 1mm aluminum to thicker steels exceeding 10mm. This inconsistency can lead to poor cut quality, excessive wear on your equipment, and increased operational costs. In this guide, we will delve into your calibration challenges and provide effective solutions to ensure optimal performance with both thick and thin materials. By addressing common user pain points and offering actionable insights, we aim to enhance your cutting precision and efficiency.

Required Preparation for Calibration

Before diving into the calibration process for the Plate and Tube Cutting Machine, ensure you have the following materials, tools, and prerequisites:

• Materials: Different thickness sheets of aluminum, stainless steel, and mild steel for testing.
• Tools: A calibrated caliper, measuring tape, cutting speed charts, and an appropriate coolant or lubricant.
• Prerequisites: Familiarize yourself with the machine\'s user manual, and understand the general properties of the materials you\'ll be working with.

Step-by-Step Guidance for Calibration

1. Assess Material Properties

Before you calibrate, examine the hardness and tensile strength of the material. For instance, mild steel has a yield strength of around 250 MPa, while stainless steel can exceed 540 MPa. Knowing these properties helps you adjust cutting parameters accordingly.

2. Adjust Cutting Parameters

Based on the material thickness and type, consult your machine\'s cutting speed chart. For example:

• For 1mm aluminum, use a speed of 2000 mm/min.
• For 10mm stainless steel, adjust to about 500 mm/min.

3. Set Up Your Machine

Make sure your Plate and Tube Cutting Machine is properly set up according to the manufacturer\'s guidelines. This includes setting the correct focal length for the laser and ensuring the nozzle is clean.

4. Perform a Test Cut

Before executing your main cutting job, perform a test cut on a scrap piece. This promotes safe operations by confirming your settings. Profile the test cut to gauge the cut’s quality.

5. Adjust Based on Test Feedback

If the test cut is unsatisfactory, adjust the cutting speed, power, and frequency. A case from a user, John, demonstrated that adjusting the power settings reduced dross on a 5mm steel sheet by approximately 50%.

6. Document Calibration Settings

Record all successful settings for each material thickness and diameter. This practice promotes efficiency in future projects. For example, document that 8mm aluminum sheeting can be optimally cut at 1800 mm/min using 1000W laser power.

Common Errors and Solutions

Users often encounter several common errors during calibration:

• Inconsistent Cutting Quality: Ensure your materials are clean and free from rust or contaminants.
• Excessive Wear on Equipment: Regularly check and replace components of the cutting machine that show signs of wear.
• High Dross Levels: This often results from incorrect power settings. Bringing power down by about 10-15% can help mitigate this.

Summary and Suggestions

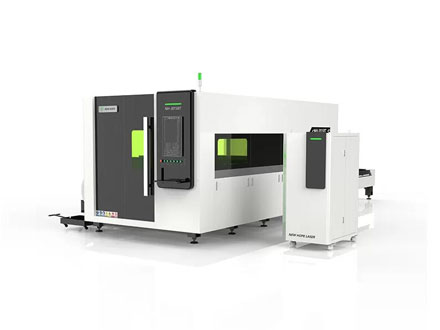

Calibrating a Plate and Tube Cutting Machine for various material thicknesses and diameters is crucial for maintaining efficiency and cut quality. By understanding the properties of your materials, adjusting cutting parameters accordingly, and documenting your settings, you will be poised for success. For precision and reliability, consider investing in New Hope Laser systems, known for their advanced calibration features tailored to meet the demands of diverse cutting tasks. Always remember that practice, testing, and ongoing adjustments are key components of achieving optimal cutting results.

FAQ

Q: How often should I recalibrate my Plate and Tube Cutting Machine?

A: It is recommended to recalibrate before starting a new project, especially if you are changing material types or thicknesses.

Q: What factors can affect cutting quality?

A: Factors include material hardness, cutting speed, power settings, and the cleanliness of your machine and materials.

Q: Can I use the same settings for different types of materials?

A: No, different materials have unique properties that require specific settings to achieve the desired cut quality.
