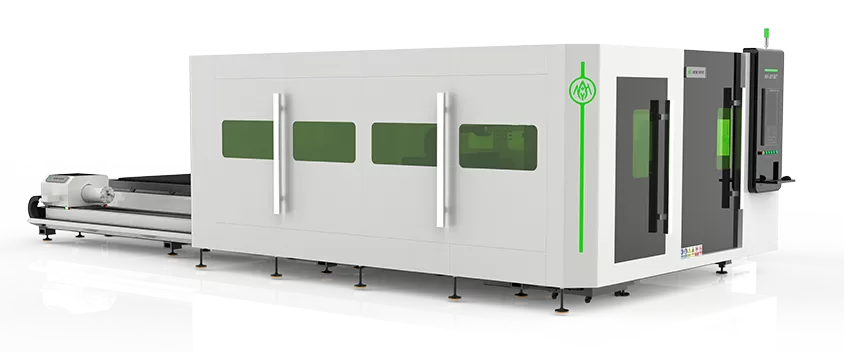

NH-3015BT2
Exchange platform plateand tube integrated laser cutting machine
1. Functional integration: The fully enclosed plate and tube integrated laser cutting machine integrates the plate and tube cutting functions, and is a dual-purpose machine. It can process common metal plates and cut various types of tubes such as round tubes, square tubes, rectangular tubes, etc., meeting the cutting needs of various workpieces and greatly saving costs. The diameter of the tube supported is 10-240mm, and other sizes can be customized.
2. Structural design: It adopts a gantry dual-drive structure, with a reinforced welded bed, and is finely processed by a large gantry milling machine and subjected to vibration aging treatment to ensure that the machine tool has good rigidity, small deformation tolerance, stable operation and fast speed, and ensures cutting accuracy and efficiency.
3. Safety protection: The fully enclosed design effectively blocks laser radiation and processing smoke, meets safety and environmental protection standards, creates a safe working environment for operators, and avoids external factors interfering with the cutting process.

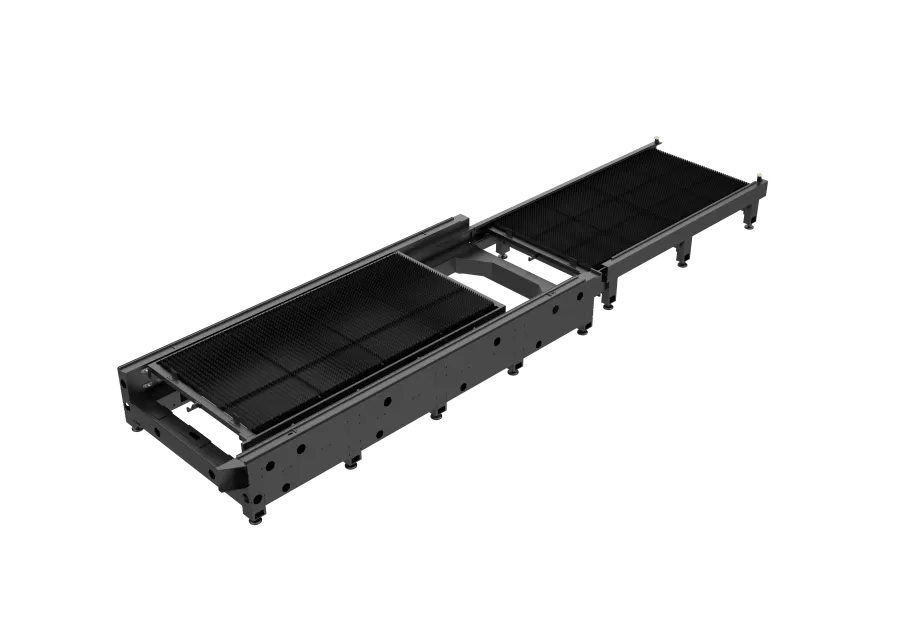

Structural design advantages:
The double-drive gantry and exchange table double-drive structures are adopted, which have higher exchange and operation efficiency. With the reinforced welded bed, the large-scale gantry milling and vibration aging treatment are carried out to ensure that the machine tool has good rigidity, small deformation tolerance, stable operation and high speed, and ensure cutting accuracy and efficiency.

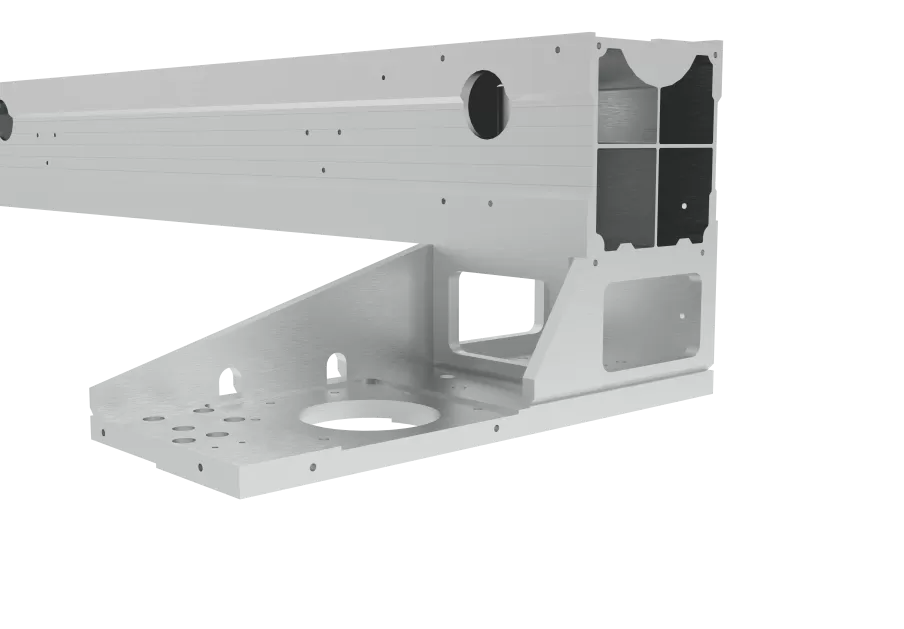

Advantages of machine crossbeam advantages
The high-strength aviation aluminum crossbeam and precision manufacturing process ensure the dynamic performance, accuracy, and stability of the machine during operation.

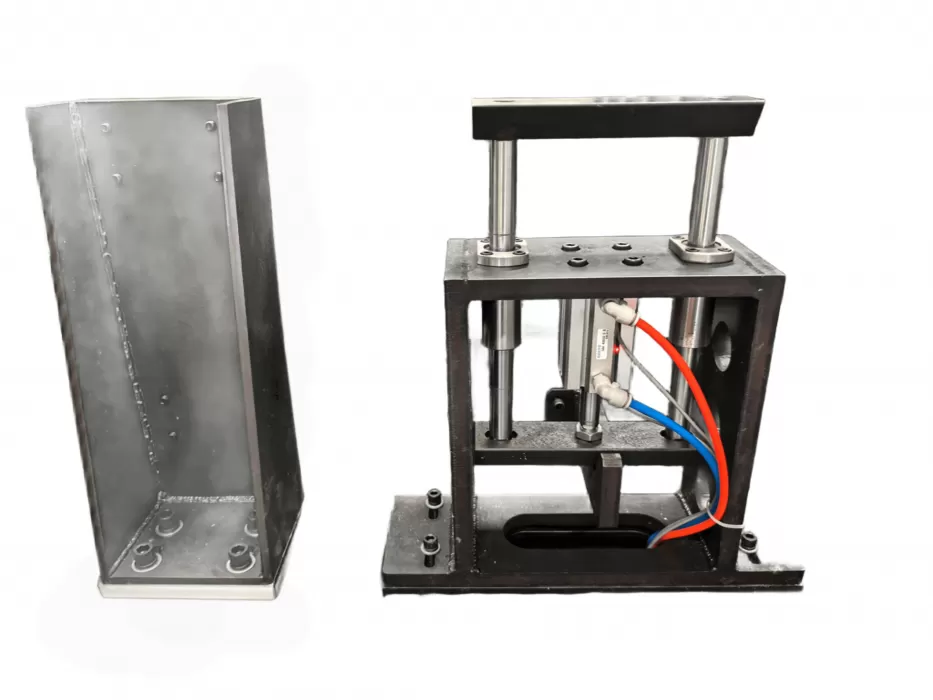

Automatic locking program and structure
The equipment is equipped with an automatic locking program and structure to make the machine cutting safer, more stable and ensure accuracy

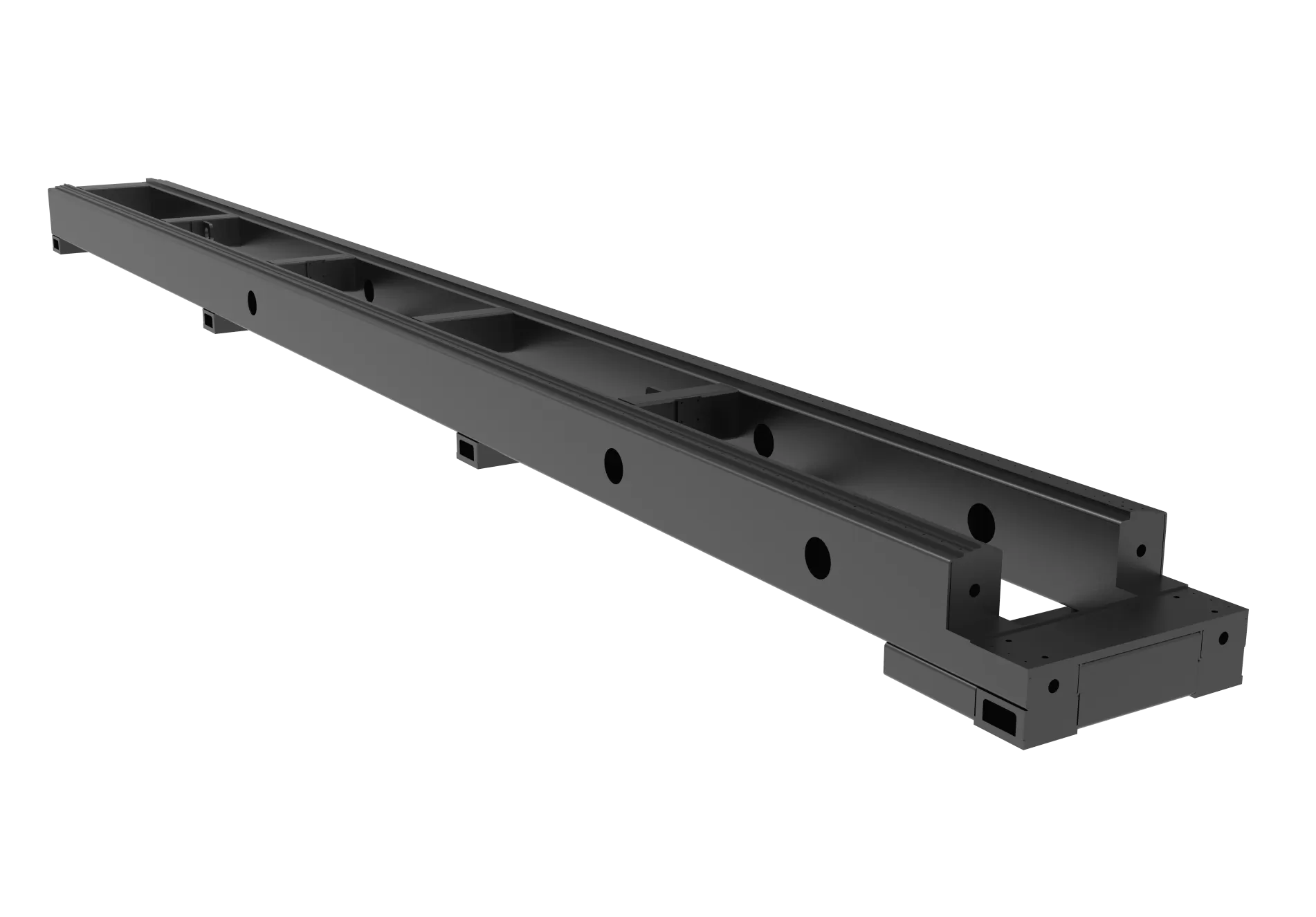

The bed of the tube - cutting part in the plate - and - tube integrated laser cutting machine has high - strength structural design. It ensures stability during high - speed tube cutting, resists deformation, and provides precise support, enhancing cutting accuracy and equipment durability.
Technical Parameter
| Machine model | 3015BT | 4020BT | 6025BT |
| Work area | 3048mm*1524mm | 4064mm*2032mm | 6096mm*2540mm |
| Pipe clamping diameter | 100m/min | 100m/min | 100m/min |
| Max speed | 1.5G | 1.5G | 1.5G |
| Max acceleration | 320mm | 320mm | 320mm |
| Z-axis travel | ±0.05mm/m | ±0.05mm/m | ±0.05mm/m |
| Positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Repeat positioning accuracy | 1000kg | 1600kg | 3000kg |
| Table load bearing weight | 1500W-12000W | 1500W-12000W | 1500W-12000W |
| Adaptation power | 3015B | 4020B | 6025B |
Product Features
1. Functional integration: The fully enclosed plate and tube integrated laser cutting machine integrates the plate and tube cutting functions, and is a dual-purpose machine. It can process common metal plates and cut various types of tubes such as round tubes, square tubes, rectangular tubes, etc., meeting the cutting needs of various workpieces and greatly saving costs. The diameter of the tube supported is 10-240mm, and other sizes can be customized.
2. Structural design: It adopts a gantry dual-drive structure, with a reinforced welded bed, and is finely processed by a large gantry milling machine and subjected to vibration aging treatment to ensure that the machine tool has good rigidity, small deformation tolerance, stable operation and fast speed, and ensures cutting accuracy and efficiency.
3. Safety protection: The fully enclosed design effectively blocks laser radiation and processing smoke, meets safety and environmental protection standards, creates a safe working environment for operators, and avoids external factors interfering with the cutting process.
4. Efficient work: Equipped with an automatic exchange workbench, such as platform switching within 15 seconds, to achieve simultaneous cutting and loading and unloading, greatly reducing auxiliary time and improving overall production efficiency.
5. Precision cutting: The tube cutting machine is equipped with dual active rotating chucks and tube auxiliary brackets, which makes loading convenient and prevents the tube from deforming. During cutting, the auto-focus laser head can automatically adjust the focus according to the material and thickness to ensure cutting accuracy.
Call to Action
FAQ
1.What's your warranty policy?
Answer:
The machine comes with a 2-3 years warranty for different laser sources, weprovide whole life free service for our machine and customers only need to payfor necessary parts&express costs for Out-of-Warranty Period.
2.How about your oversea service? What can I do if there is someproblem with my machine?
Answer:
Free training and technical support are always available for all customers Installation on-site or 7X24 online installation quidance is also provided.
3.How can I choose the most suitable machine?
Answer:
Please let us know the materials you want to proceed, with or what job you needto do with the machine, our sales will recommend machines with suitable configurations and solutions for all your production needs.
4.Do you offer OEM&ODM or customized service?
Answer:
OEM or ODM is welcomed. New Hope provide all kinds of solutions for automation, laser cutting/welding/cleaning, customized machines, and service for our esteemed customer. Our technology team together with our cooperated scientific institution&colleges and universities, provide our clients with more efficient, stable and cost-saving solutions.
5.Can we sell your machine in our country as a local agent?
Answer:
Yes, we will support our agents with training, installation, after-sales, and technical support service to ensure the well-use of each machine on the end-user's site.
