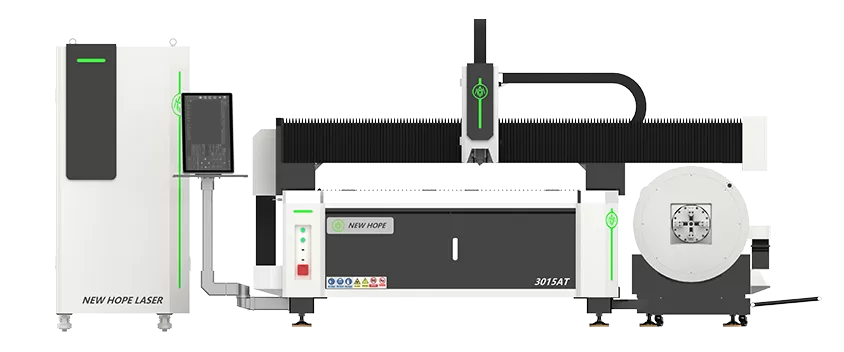

NH-3015AT
Single platform plate and tube integrated laser cutting machine

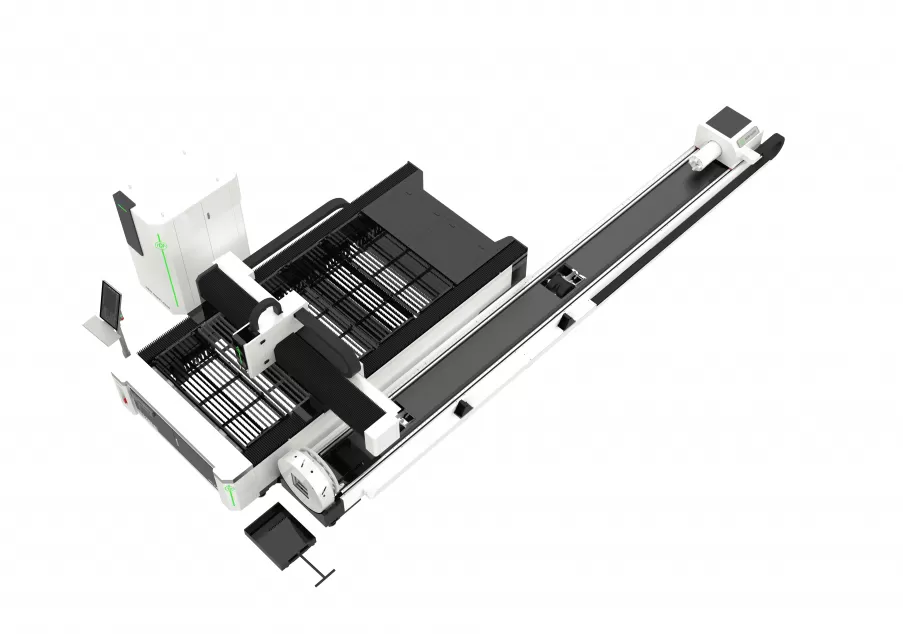

The Single Platform Plate and Tube Integrated Laser Cutting Machine from New Hope CNC is a highly versatile and efficient solution for modern metal fabrication.
Advantages of choosing a Single platform plate and tube integrated laser cutting machine
The 3015 plate-and-tube integrated laser cutting machine offers multiple advantages. Firstly, it combines plate and tube cutting functions, suiting diverse metalworking needs, from 0.5 - 25mm carbon steel to 0.5 - 10mm stainless steel. Secondly, it features high - speed cutting, with smooth and burr - free cut surfaces, minimizing post - processing.

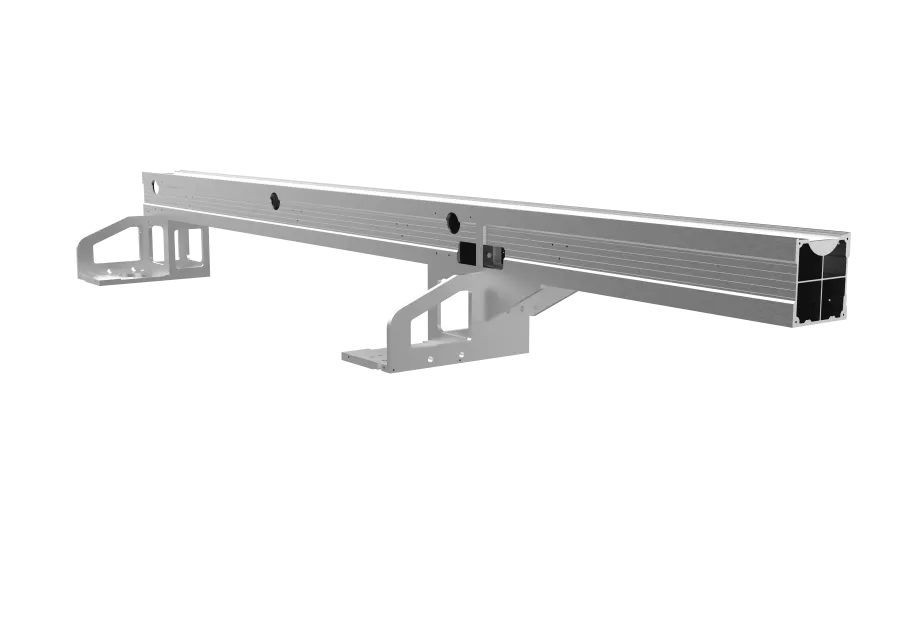

Advantages of machine crossbeam advantages
The high-strength aviation aluminum crossbeam and precision manufacturing process ensure the dynamic performance, accuracy, and stability of the machine during operation.

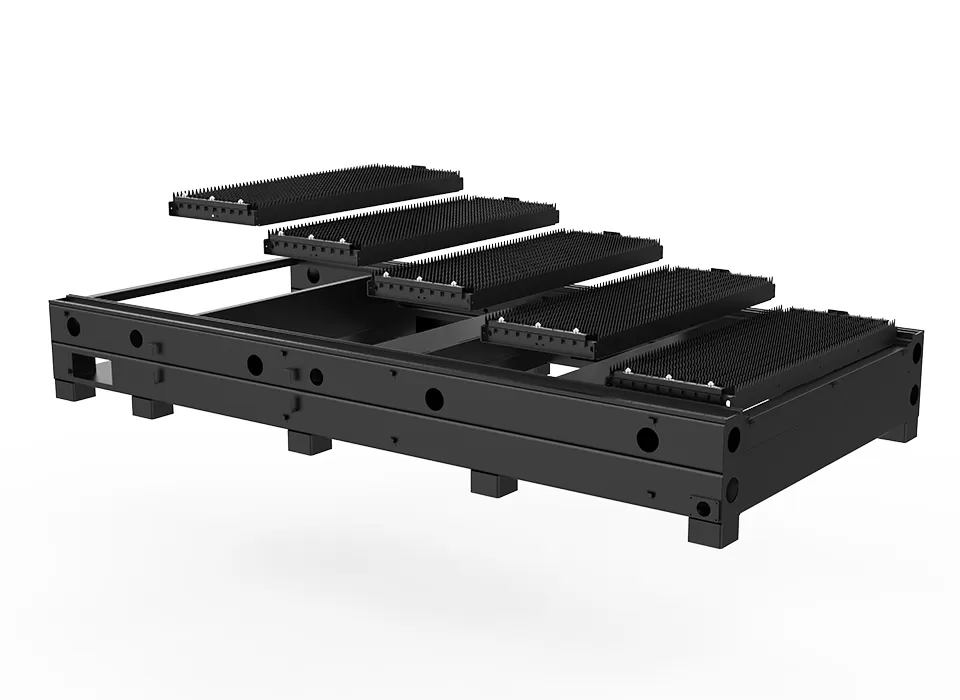

Advantages of modular processing table
The load capacity of each independent module does not affect each other, making disassembly and maintenance more convenient and faster.

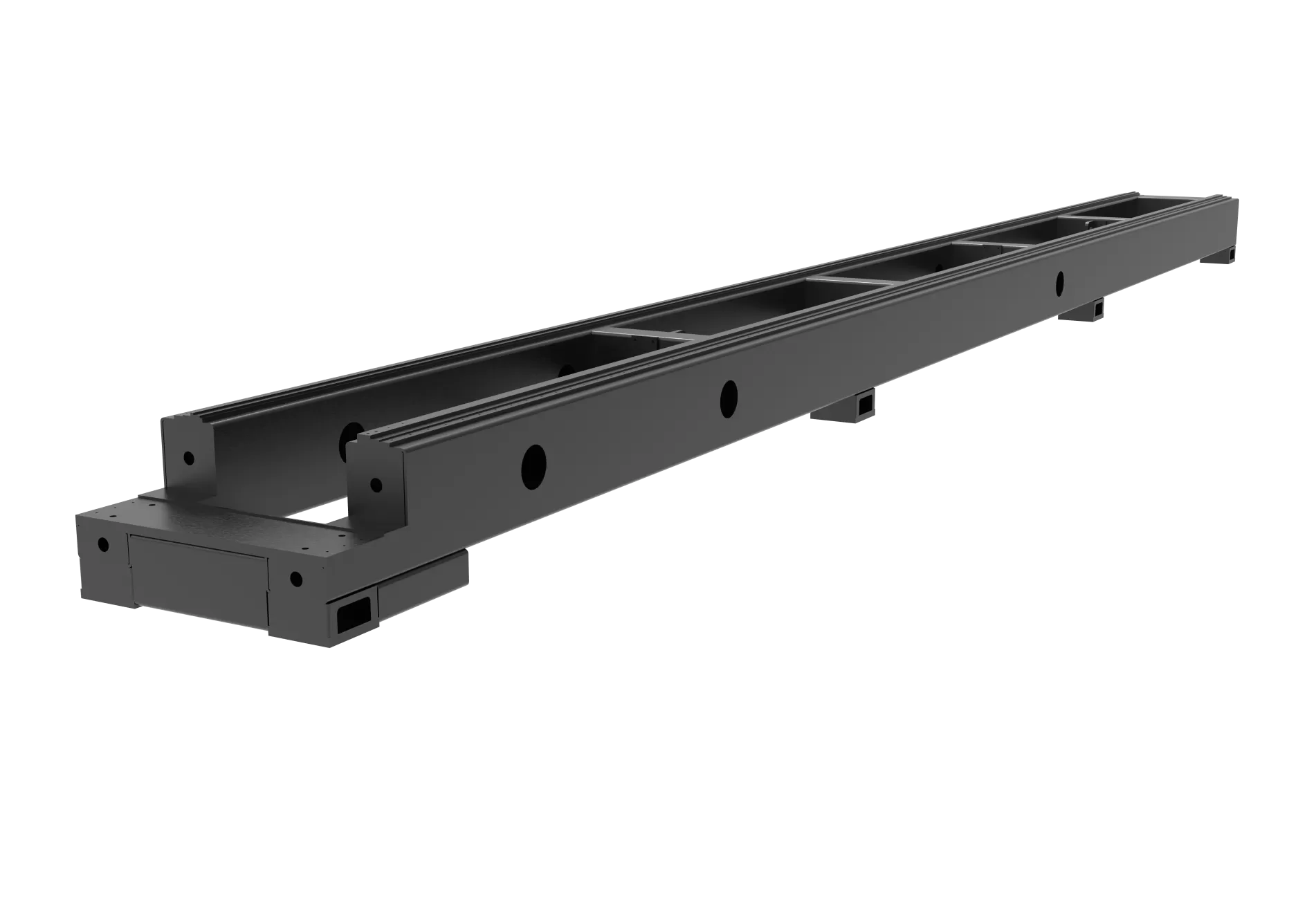

The bed of the tube
The bed of the Single platform plate and tube integrated laser cutting machine has high - strength structural design. It ensures stability during high - speed tube cutting, resists deformation, and provides precise support, enhancing cutting accuracy and equipment durability.
The Single Platform Plate and Tube Integrated Laser Cutting Machine from New Hope is a highly versatile and efficient solution for modern metal fabrication. Combining both plate and tube cutting capabilities in a single platform, this machine significantly reduces equipment footprint and production downtime, making it ideal for workshops aiming for maximum productivity.
Technical Parameter
| Machine model | 3015A | 4020A | 6025A |
| Work area | 3048mm*1524mm | 4064mm*2032mm | 6096mm*2540mm |
| Pipe clamping diameter | 10-230mm | 10-230mm | 10-230mm |
| Max speed | 100m/min | 100m/min | 100m/min |
| Max acceleration | 1.5G | 1.5G | 1.5G |
| Z-axis travel | 320mm | 320mm | 320mm |
| Positioning accuracy | ±0.05mm/m | ±0.05mm/m | ±0.05mm/m |
| Repeat positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Table load bearing weight | 1000kg | 1600kg | 3000kg |
| Adaptation power | 1500W-12000W | 1500W-12000W | 1500W-12000W |
Product Features
1. Large working area: Its working area is usually 3000mm×1500mm, which can meet the cutting needs of various sizes of plates and pipes.
2. Powerful cutting ability: It can cut various metal materials, such as carbon steel, stainless steel, etc. The cutting thickness can reach up to 50mm, with fast speed and high precision.
3. High - quality structure: The bed is made of high - quality steel plate by welding, with high strength and good stability. The gantry is often made of aviation aluminum, which is light in weight and conducive to high - speed movement.
4. Intelligent operation: Equipped with a professional CNC system and nesting software, it has functions such as automatic focusing and real - time monitoring, which is easy to operate.
5. Wide range of applications: Widely used in sheet metal processing, advertising sign production, electrical cabinet manufacturing and other industries, which can improve production efficiency and reduce costs.
● Automotive Manufacturing: Efficiently cuts car body parts, chassis components, and structural elements with high precision.
● Aerospace Industry: Handles lightweight alloys and complex geometries required in aircraft parts production.
● Metal Fabrication Workshops: Ideal for prototyping, custom components, and batch production.
● Construction & Architectural Metalwork: Cuts beams, columns, and decorative panels with accuracy and speed.
● Home Appliance & Machinery Production: Produces precise panels, tubing, and parts with minimal finishing requirements.
● Increased Productivity: Dual-function machine allows continuous operation without switching platforms.
● Operator Safety: Full enclosure and integrated dust extraction system ensure a safe working environment.
● Reduced Downtime: Automated material handling and intelligent CNC control minimize setup time.
● High-Quality Cutting: Smooth edges, precise dimensions, and consistent results reduce secondary processing.
Request a Custom Quote – Tailored laser cutting solutions for your production needs.
Call to Action
FAQ
1.What's your warranty policy?
Answer:
The machine comes with a 2-3 years warranty for different laser sources, weprovide whole life free service for our machine and customers only need to payfor necessary parts&express costs for Out-of-Warranty Period.
2.How about your oversea service? What can I do if there is someproblem with my machine?
Answer:
Free training and technical support are always available for all customers Installation on-site or 7X24 online installation quidance is also provided.
3.How can I choose the most suitable machine?
Answer:
Please let us know the materials you want to proceed, with or what job you needto do with the machine, our sales will recommend machines with suitable configurations and solutions for all your production needs.
4.Do you offer OEM&ODM or customized service?
Answer:
OEM or ODM is welcomed. New Hope provide all kinds of solutions for automation, laser cutting/welding/cleaning, customized machines, and service for our esteemed customer. Our technology team together with our cooperated scientific institution&colleges and universities, provide our clients with more efficient, stable and cost-saving solutions.
5.Can we sell your machine in our country as a local agent?
Answer:
Yes, we will support our agents with training, installation, after-sales, and technical support service to ensure the well-use of each machine on the end-user's site.
