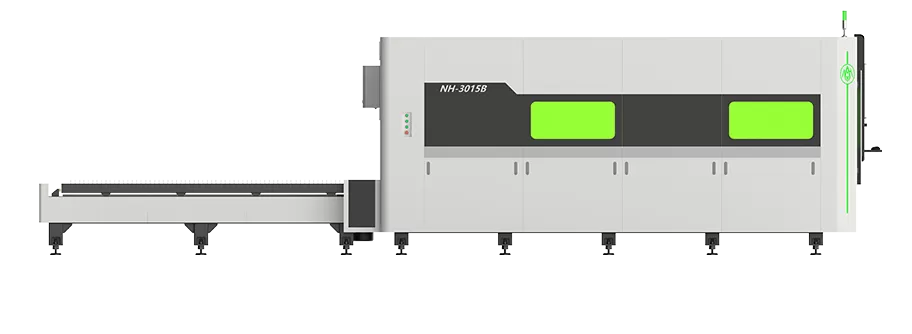

NH-3015B
Enclosed Exchange Platform Plate Fiber Laser Cutting Machine
enclosed exchange platform plate fiber laser cutting machine for safe, precise, and continuous metal sheet cutting.

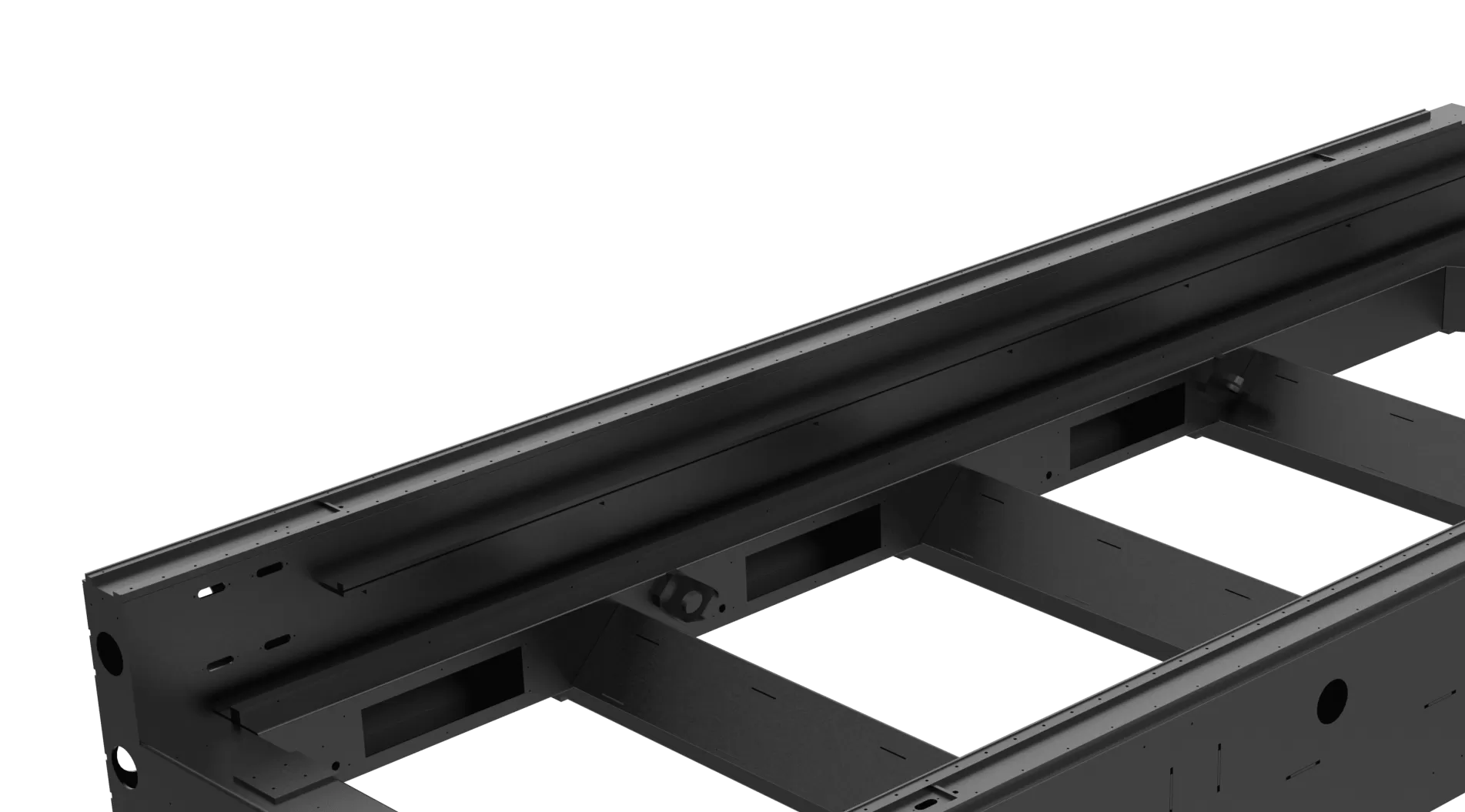

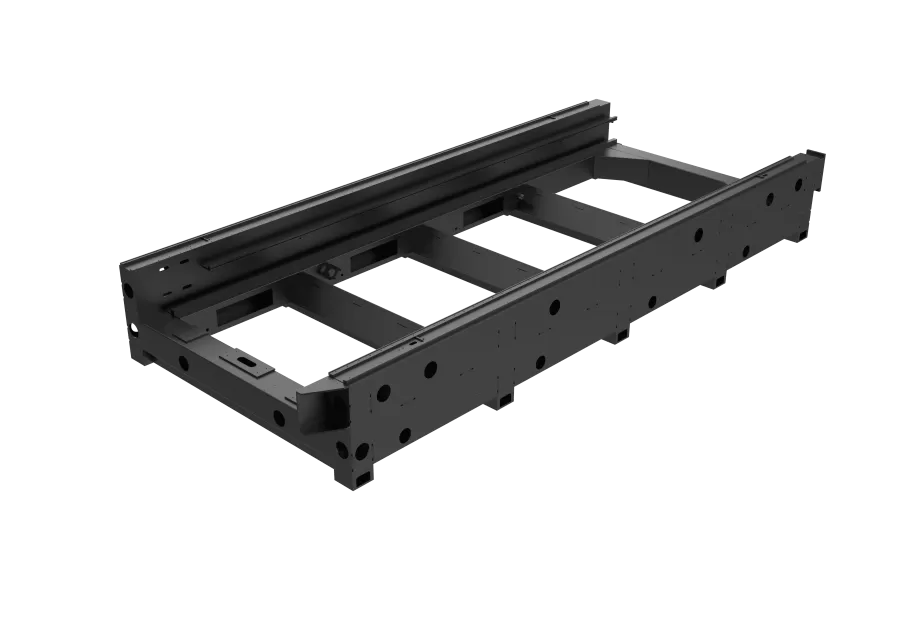

Advantages of bed structure
The bed structure of the swapping platform fully enclosed fiber laser cutting machine features a welded steel plate design, ensuring exceptional rigidity and minimal vibration during high-power cutting. Its integral construction enhances load-bearing capacity for large workpieces, while the stress-relieved design reduces thermal deformation. This robust structure guarantees long-term precision and stable operation for continuous heavy-duty manufacturing.
Advantages of machine crossbeam advantages
Aviation aluminum alloy beams offer exceptional strength-to-weight ratios, significantly reducing the gantry's moving mass. This enables faster accelerations, higher cutting speeds, and improved dynamic response, boosting productivity. The inherent rigidity ensures precise positioning accuracy and minimizes vibration during high-speed cutting, enhancing edge quality and part consistency. Reduced inertia lessens wear on drives and bearings, lowering long-term maintenance costs. Excellent thermal stability maintains dimensional integrity under operational heat loads. Furthermore, its natural corrosion resistance ensures durability in industrial environments.

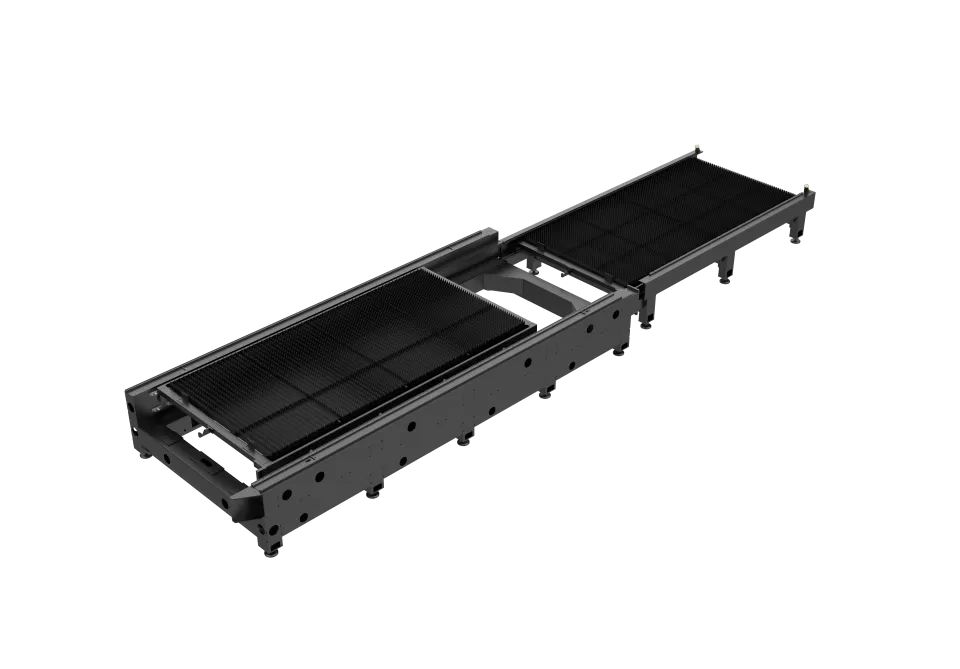

Advantages of dual-drive switching platform
With independent dual motors driving the platforms, it enables synchronized material loading/unloading and cutting, eliminating idle time. This design boosts production efficiency by over 50% through seamless workflow. The balanced dual-drive system ensures stable, precise platform movement, reducing vibration and enhancing operational reliability for continuous high-volume manufacturing.
Advantages of follow-up zoned extraction
This system features extraction nozzles that dynamically track the cutting head's position, activating only the specific zone where cutting occurs. This targeted approach dramatically improves suction efficiency right at the fume source, ensuring superior capture rates of hazardous fumes and particulates before they disperse. Compared to full-table extraction, it significantly reduces the required airflow volume and energy consumption. The concentrated suction power enhances extraction effectiveness, especially for thick materials or high-power cutting. Lower overall airflow also minimizes noise levels. This intelligent, on-demand extraction delivers optimal fume control while substantially lowering operational costs and environmental impact.
The Enclosed Exchange Platform Plate Fiber Laser Cutting Machine is designed for high-efficiency, large-scale metal plate processing in modern manufacturing environments. Equipped with a fully enclosed structure and dual exchange working platforms, this model enables continuous cutting and loading/unloading at the same time—boosting productivity by up to 50% compared with traditional machines.
The enclosed design ensures a safe, clean, and noise-reduced workspace, effectively isolating laser radiation and dust from the operator’s area. Built with a heavy-duty welded steel frame and annealed for maximum stability, the machine provides excellent rigidity and precision even under high-speed operation. Combined with a high-power fiber laser source, it delivers smooth, burr-free cuts on various metals, including carbon steel, stainless steel, aluminum, copper, and galvanized plates.
With its smart partition dust removal, automatic lifting exchange table, and intelligent cooling system, the machine ensures long-term stable performance in demanding industrial applications. Whether you are processing large-format plates or fulfilling continuous batch production, this model guarantees consistent cutting accuracy, safety, and efficiency.
Upgrade your cutting workshop with this all-in-one high-performance fiber laser cutting system. Experience next-generation automation, safety, and cost-effectiveness—contact us now for a live demo or customized cutting solution.
Technical Parameter
| Machine model | 3015B | 4020B | 6025B |
| Work area | 3048mm*1524mm | 4064mm*2032mm | 6096mm*2540mm |
| Max speed | 100m/min | 100m/min | 100m/min |
| Acceleration | 1.5G | 1.5G | 1.5G |
| Z-axis travel | 320mm | 320mm | 320mm |
| Positioning accuracy | ±0.05mm/m | ±0.05mm/m | ±0.05mm/m |
| Repeat positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Table load bearing weight | 1000kg | 1600kg | 3000kg |
| Adaptation power | 1500W-12000W | 1500W-12000W | 1500W-12000W |
Product Features
Fully Enclosed Safety Structure: The large-format enclosed housing effectively isolates laser radiation, noise, and cutting fumes, meeting international safety standards. It integrates interlocking doors and real-time monitoring, ensuring operator safety and a clean working environment.
High-Power Fiber Laser System: Powered by a high-performance fiber laser source, it delivers precise cutting on various metals (steel, aluminum, copper) up to thick plates, with fast speed and minimal burrs. The enclosed design also protects the laser system from dust, extending its service life.
Intelligent Dust Extraction & Cooling: The built-in zoned dust extraction system quickly removes debris, while the enclosed structure optimizes airflow for efficient fume absorption. Combined with a professional cooling system, it ensures stable operation for long hours, perfect for large-scale industrial applications.
The welded steel frame is stress-relieved through high-temperature annealing, ensuring long-term dimensional stability. This provides precise motion control with positioning accuracy of ±0.05 mm/m and repeat positioning accuracy of ±0.03 mm, ensuring consistent cutting results over years of operation.
While one table is cutting, the other platform can be loaded with new sheets. The automatic exchange system minimizes downtime and boosts throughput—ideal for mass production and 24/7 manufacturing environments.
The fully enclosed laser cabinet with interlock doors protects operators from laser radiation and metal dust. The intelligent zone exhaust system activates only where the laser head operates, effectively reducing smoke, fumes, and energy consumption.
Suitable for cutting a wide range of materials—steel, aluminum, copper, brass, and other alloys. The system adapts to different thicknesses with adjustable laser power options, ensuring clean edges and minimal post-processing.
Equipped with CNC intelligent control software, operators can optimize nesting, minimize waste, and monitor performance in real time. The fiber laser source ensures low power consumption and minimal maintenance, offering a cost-effective cutting solution.
NewHope CNC provides a 2–3 year warranty, lifetime technical support, and 24/7 online service. We also offer on-site installation, training, and OEM/ODM customization to meet your specific production needs.
Investing in this machine means reducing labor dependency, shortening production cycles, and achieving higher precision—all leading to better profitability and competitiveness.
Ready to upgrade your production line with a high-speed, fully enclosed laser cutting solution? Contact us today to get a personalized quotation, sample cutting video, or arrange an on-site demonstration. We’ll help you choose the ideal configuration for your materials, plate thickness, and production goals.
Call to Action
Related Products
FAQ
1.What's your warranty policy?
Answer:
The machine comes with a 2-3 years warranty for different laser sources, weprovide whole life free service for our machine and customers only need to payfor necessary parts&express costs for Out-of-Warranty Period.
2.How about your oversea service? What can I do if there is someproblem with my machine?
Answer:
Free training and technical support are always available for all customers Installation on-site or 7X24 online installation quidance is also provided.
3.How can I choose the most suitable machine?
Answer:
Please let us know the materials you want to proceed, with or what job you needto do with the machine, our sales will recommend machines with suitable configurations and solutions for all your production needs.
4.Do you offer OEM&ODM or customized service?
Answer:
OEM or ODM is welcomed. New Hope provide all kinds of solutions for automation, laser cutting/welding/cleaning, customized machines, and service for our esteemed customer. Our technology team together with our cooperated scientific institution&colleges and universities, provide our clients with more efficient, stable and cost-saving solutions.
5.Can we sell your machine in our country as a local agent?
Answer:
Yes, we will support our agents with training, installation, after-sales, and technical support service to ensure the well-use of each machine on the end-user's site.
