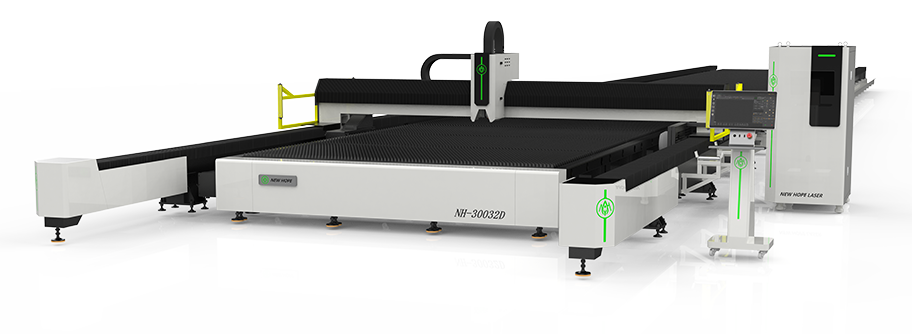

NH-30032D
Ground Rail Plate Fiber Laser Cutting Machine
1. Robust Ground Rail Gantry Structure: Features a heavy-duty, stable gantry system mounted on precision-ground rails embedded in the factory floor. This design provides exceptional rigidity and minimizes vibration, enabling high-precision cutting over very large work areas.
2. Exceptional Large-Format Capacity: Specifically engineered for processing oversized sheets and plates (e.g., 10m x 2.5m, 12m x 2.5m, 3m x 14m, or larger). Ideal for industries requiring cutting of massive components from standard or custom-sized metal stock.
3. High-Power Laser Cutting Performance:Equipped with high-power fiber lasers capable of cleanly and efficiently cutting thick materials (including carbon steel, stainless steel, aluminum, brass, copper) at high speeds, maintaining accuracy across the entire expansive worktable.
4. Heavy-Duty Industrial Applications: Built for demanding industrial environments like shipbuilding, heavy machinery, construction equipment, pressure vessels, wind towers, and structural steel fabrication, handling substantial plate weights with stability.
5. Automation-Ready & High Productivity: Designed to integrate seamlessly with automated material handling systems (loaders/unloaders, conveyors, pallet systems) for continuous, unmanned operation, maximizing throughput for large-scale industrial production runs.
Advantages of bed structure
Robust Ground Rail Gantry Structure: Features a heavy-duty, stable gantry system mounted on precision-ground rails embedded in the factory floor. This design provides exceptional rigidity and minimizes vibration, enabling high-precision cutting over very large work areas.
Advantages of machine crossbeam advantages
The high-strength aviation aluminum crossbeam and precision manufacturing process ensure the dynamic performance, accuracy, and stability of the machine during operation.

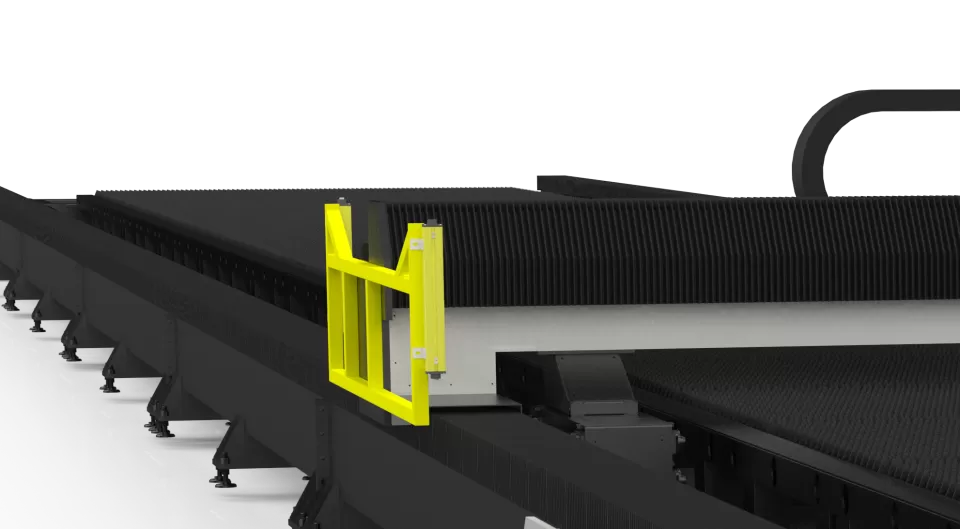

The Importance of Safety Light Curtains
The safety light curtain on rail-type gantry laser cutters is crucial for operational safety. Composed of infrared light beams, it forms an invisible protective barrier around the working area. When an operator or object interrupts the beams, the system instantly halts the machine, preventing potential injuries from moving parts or laser radiation. This non-contact safety device ensures real-time protection, complies with international safety standards, and balances productivity with operator well-being in heavy-duty manufacturing.

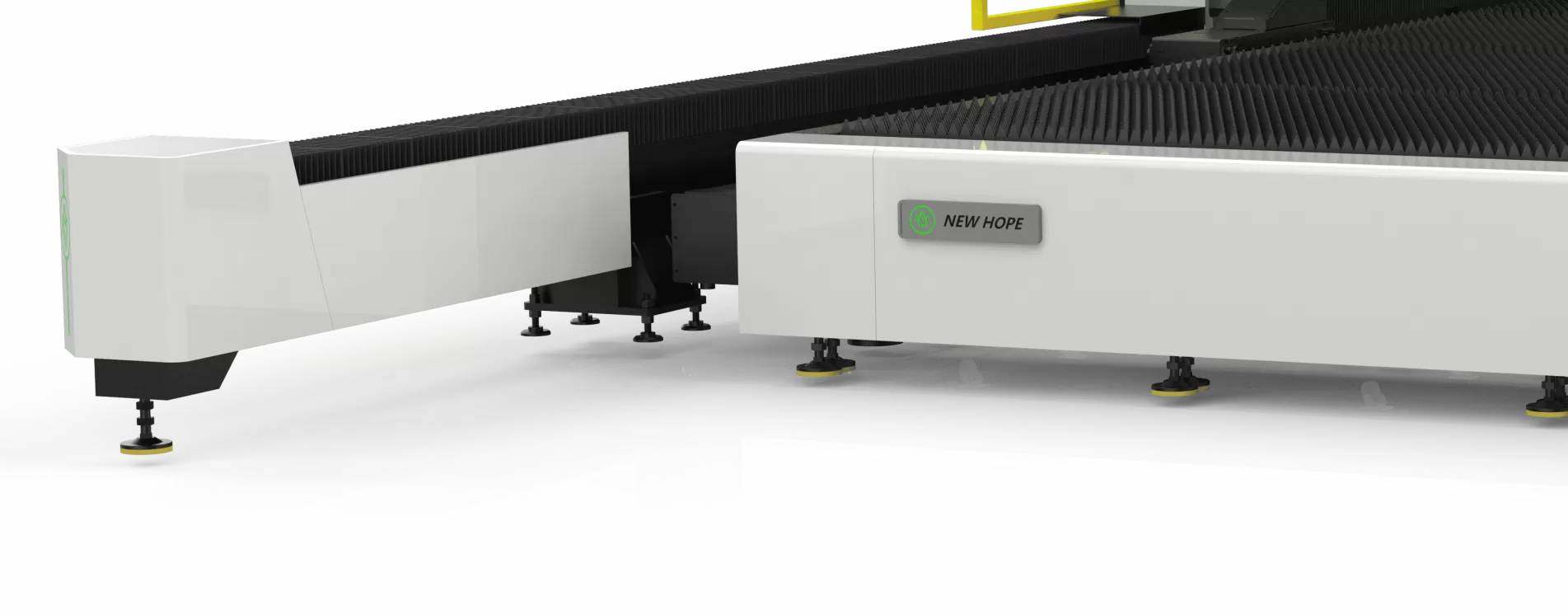

Advantages of separating the bed and the worktable
The separated bed and worktable design of rail-type gantry laser cutters offers distinct advantages. By isolating the worktable from the main bed, it reduces vibration interference during high-speed cutting, ensuring higher precision for large workpieces. This structure also enables independent maintenance—wear on the worktable can be addressed without affecting the bed’s rigidity. Additionally, the separated design facilitates easier material loading/unloading and adapts to diverse workpiece sizes, enhancing operational flexibility and long-term reliability.
Technical Parameter
| Machine model | 14032D | 30032D |
| Work area | 14000mm*3200mm | 30000mm*3200mm |
| Max speed | 80m/min | 80m/min |
| Acceleration | 0.8G | 0.8G |
| Z-axis travel | 150mm | 150mm |
| Positioning accuracy | ±0.05mm/m | ±0.05mm/m |
| Repeat positioning accuracy | ±0.03mm | ±0.03mm |
| Table load bearing weight | 22800kg | 49000kg |
| Adaptation power | 6000-60000W | 6000-60000W |
Maximize your productivity with a Ground Rail Plate Fiber Laser Cutting Machine! Enjoy precise, reliable, and fully customizable cutting solutions. Contact us today to get your tailored solution and streamline your workflow!
Product Features
1. Robust Ground Rail Gantry Structure: Features a heavy-duty, stable gantry system mounted on precision-ground rails embedded in the factory floor. This design provides exceptional rigidity and minimizes vibration, enabling high-precision cutting over very large work areas.
2. Exceptional Large-Format Capacity: Specifically engineered for processing oversized sheets and plates (e.g., 10m x 2.5m, 12m x 2.5m, 3m x 14m, or larger). Ideal for industries requiring cutting of massive components from standard or custom-sized metal stock.
3. High-Power Laser Cutting Performance:Equipped with high-power fiber lasers capable of cleanly and efficiently cutting thick materials (including carbon steel, stainless steel, aluminum, brass, copper) at high speeds, maintaining accuracy across the entire expansive worktable.
4. Heavy-Duty Industrial Applications: Built for demanding industrial environments like shipbuilding, heavy machinery, construction equipment, pressure vessels, wind towers, and structural steel fabrication, handling substantial plate weights with stability.
5. Automation-Ready & High Productivity: Designed to integrate seamlessly with automated material handling systems (loaders/unloaders, conveyors, pallet systems) for continuous, unmanned operation, maximizing throughput for large-scale industrial production runs.
The Ground Rail Plate Fiber Laser Cutter is widely used for high-precision cutting of rail plates and large metal sheets across multiple industries, including:
Railway construction and maintenance – cutting rail plates and sleepers
Heavy engineering – structural steel and large metal components
Shipbuilding – thick metal plate processing
Automotive and rail vehicle manufacturing – chassis and frame plate cutting
Petrochemical and energy industries – large sheet metal fabrication
Construction machinery – steel plate and structural component processing
General industrial metal fabrication – large-format sheet and plate cutting
We offer a wide range of customization options to meet your specific production and branding requirements:
Customized Items – tailor the product to your application needs
Customized Logo – add your company logo for branding
Customized Color – choose the color that fits your brand or factory setup
Customized Size – adjust dimensions to suit your space or production line
Customized Appearance – modify external design for aesthetic or functional purposes
Customized Structure – optimize the machine structure for efficiency and durability
Customized Function – implement special functions to meet unique processing requirements
Boost your production efficiency with a Ground Rail Plate Fiber Laser Cutting Machine from New Hope! With over 10 years of experience, integrated R&D and manufacturing, and strict quality control, we deliver precise, reliable, and fully customizable cutting solutions. Get in touch now to request your solution and elevate your workflow!
Call to Action
FAQ
1.What's your warranty policy?
Answer:
The machine comes with a 2-3 years warranty for different laser sources, weprovide whole life free service for our machine and customers only need to payfor necessary parts&express costs for Out-of-Warranty Period.
2.How about your oversea service? What can I do if there is someproblem with my machine?
Answer:
Free training and technical support are always available for all customers Installation on-site or 7X24 online installation quidance is also provided.
3.How can I choose the most suitable machine?
Answer:
Please let us know the materials you want to proceed, with or what job you needto do with the machine, our sales will recommend machines with suitable configurations and solutions for all your production needs.
4.Do you offer OEM&ODM or customized service?
Answer:
OEM or ODM is welcomed. New Hope provide all kinds of solutions for automation, laser cutting/welding/cleaning, customized machines, and service for our esteemed customer. Our technology team together with our cooperated scientific institution&colleges and universities, provide our clients with more efficient, stable and cost-saving solutions.
5.Can we sell your machine in our country as a local agent?
Answer:
Yes, we will support our agents with training, installation, after-sales, and technical support service to ensure the well-use of each machine on the end-user's site.
