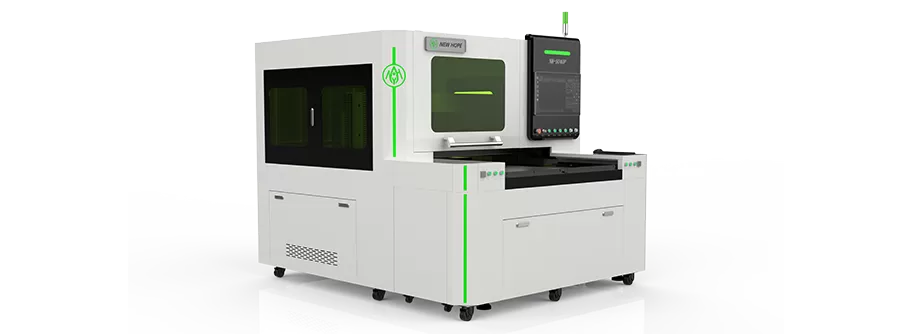

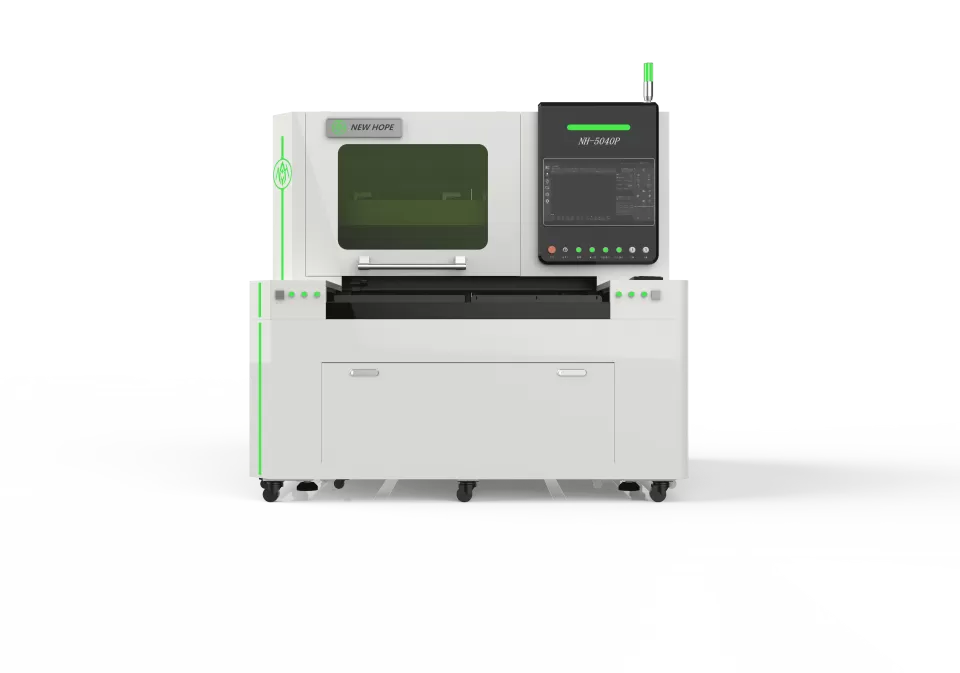

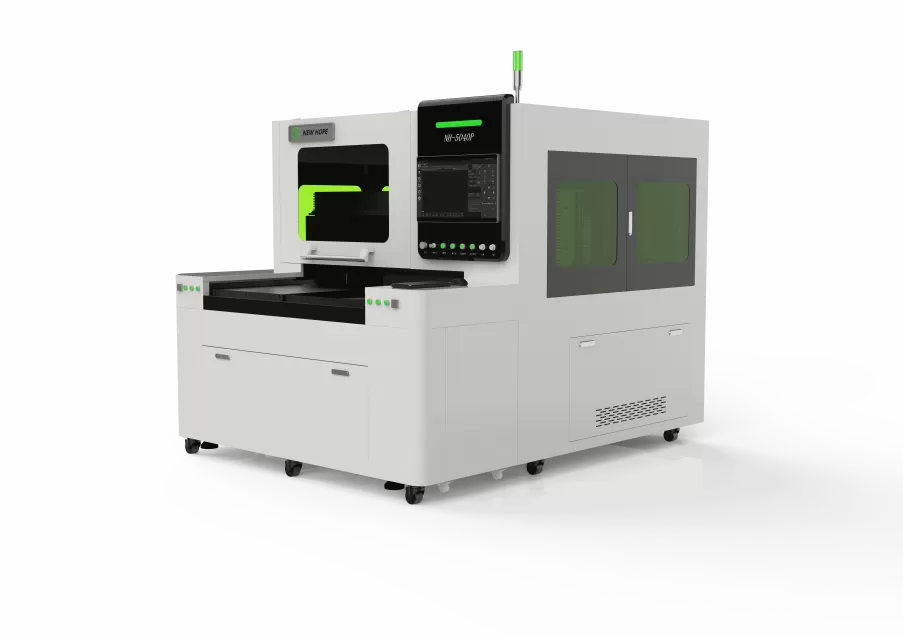

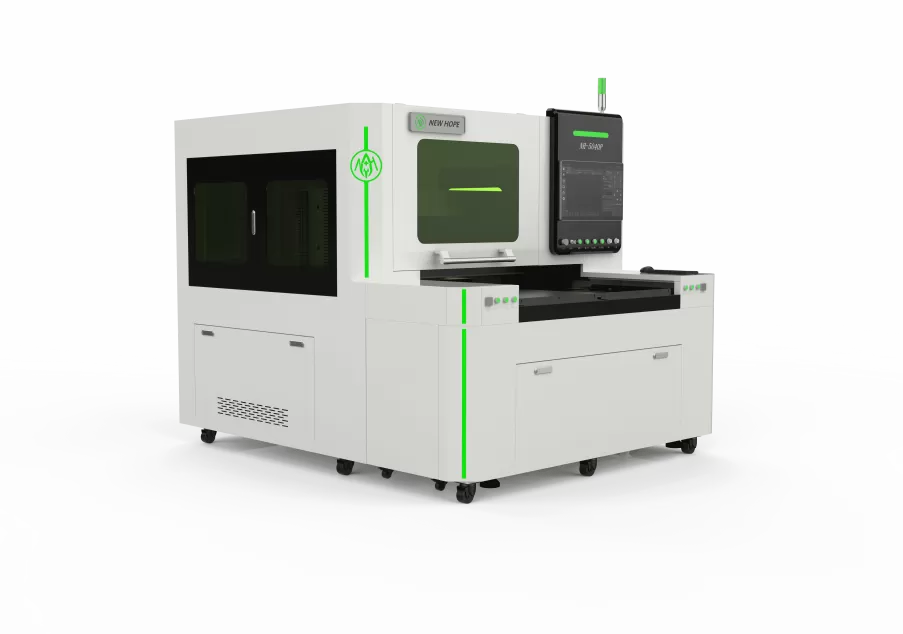

NH-5040P
Picosecond Glass Cutting Machine
1. Cutting Principle：The picosecond glass cutting machine uses picosecond - level (10⁻¹² seconds) ultra - short pulse lasers. These lasers generate extremely high - energy density in a short time. When interacting with glass, they cause non - linear absorption, material breakdown, and plasma filamentation. This leads to the formation of internal stress in the glass, which eventually makes the glass crack along the processing line, achieving precise cutting.
2. High Precision：It offers micron - level cutting accuracy, with a positioning accuracy that can reach up to 0.002mm and a repeat positioning accuracy of 0.002mm. This allows for the cutting of various complex patterns and fine details, meeting the high - precision requirements of industries like 3C electronics.
3. High Efficiency：The machine has a fast cutting speed. For example, the linear cutting speed can reach up to 140mm/s, and the corner cutting speed can reach 300mm/s. In some cases, it can cut through 19mm - thick glass in one pass, which is several times more efficient than traditional CNC processing.
4. Cold Processing and Material Protection**：As a cold - processing technology, the picosecond laser has a very short pulse width. The heat generated during the interaction with the glass dissipates quickly, causing almost no thermal damage to the glass. The edge chipping is less than 5um, and the edge strength is about 30% higher than that of traditional mechanical cutting, ensuring the quality of the glass.
5. Wide Application：It is suitable for cutting not only ordinary flat glass but also special glasses, glass - ceramic composites, and other brittle materials. It is widely used in industries such as 3C electronics (for manufacturing mobile phone screens, tablet touch - screen glass), automotive (for car window glass, rear - view mirror glass), and aerospace (for processing high - performance glass - ceramic composites).
High Precision
It offers micron - level cutting accuracy, with a positioning accuracy that can reach up to 0.002mm and a repeat positioning accuracy of 0.002mm. This allows for the cutting of various complex patterns and fine details, meeting the high - precision requirements of industries like 3C electronics.
Cold Processing
Pico-second pulses prevent thermal damage (temperature rise <5℃), suitable for thin glass and coated materials without cracking or melting.
Wide Material Compatibility
Processes glass, glass-ceramics, sapphire, etc., even with ITO layers, avoiding coating damage.
High Efficiency
Cuts at 140mm/s linearly and 300mm/s at corners, forming complex patterns directly, 3-5x faster than CNC.
Technical Parameter
| Machine model | 5040P |
| Work area | 500mm*400mm |
| Max speed | 500mm/s |
| Positioning accuracy | ±0.002mm/m |
| Repeat positioning accuracy | ±0.002mm |
| Processing thickness | ≤12mm |
| Structure | Sheet metal welding cabinet, marble base, linear motor drive |
| Laser Type | Infrared picosecond/green light picosecond/ultraviolet picosecond |
| Adaptation power | 20W-70W |
Product Features
1. Cutting Principle：The picosecond glass cutting machine uses picosecond - level (10⁻¹² seconds) ultra - short pulse lasers. These lasers generate extremely high - energy density in a short time. When interacting with glass, they cause non - linear absorption, material breakdown, and plasma filamentation. This leads to the formation of internal stress in the glass, which eventually makes the glass crack along the processing line, achieving precise cutting.
2. High Precision：It offers micron - level cutting accuracy, with a positioning accuracy that can reach up to 0.002mm and a repeat positioning accuracy of 0.002mm. This allows for the cutting of various complex patterns and fine details, meeting the high - precision requirements of industries like 3C electronics.
3. High Efficiency：The machine has a fast cutting speed. For example, the linear cutting speed can reach up to 140mm/s, and the corner cutting speed can reach 300mm/s. In some cases, it can cut through 19mm - thick glass in one pass, which is several times more efficient than traditional CNC processing.
4. Cold Processing and Material Protection**：As a cold - processing technology, the picosecond laser has a very short pulse width. The heat generated during the interaction with the glass dissipates quickly, causing almost no thermal damage to the glass. The edge chipping is less than 5um, and the edge strength is about 30% higher than that of traditional mechanical cutting, ensuring the quality of the glass.
5. Wide Application：It is suitable for cutting not only ordinary flat glass but also special glasses, glass - ceramic composites, and other brittle materials. It is widely used in industries such as 3C electronics (for manufacturing mobile phone screens, tablet touch - screen glass), automotive (for car window glass, rear - view mirror glass), and aerospace (for processing high - performance glass - ceramic composites).
