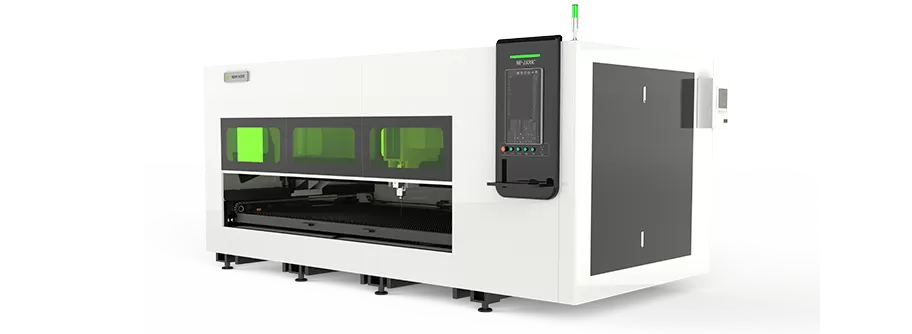

NH-1530C
Side-Pull Plate Fiber Laser Cutting Machine
The Side Pull Plate Fiber Laser Cutting Machine by New Hope CNC is designed to optimize high-volume metal cutting with precision and efficiency. Its innovative side-pull feed system allows operators to load large metal sheets from the side, reducing downtime and improving workflow. This ergonomic design not only enhances safety and productivity but also saves valuable floor space.

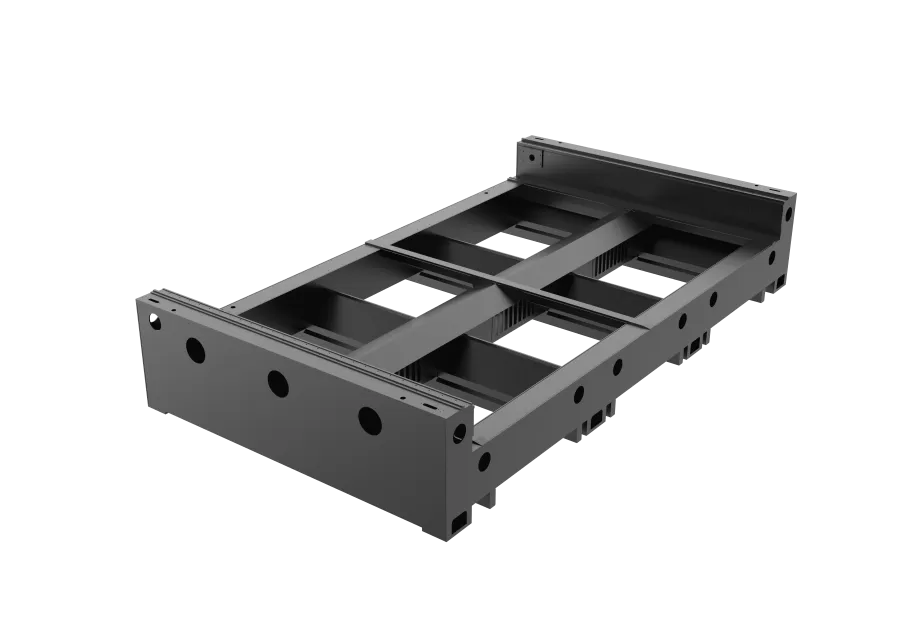

Advantages of bed structure
The robust welded steel bed provides exceptional stability and vibration damping, ensuring cutting precision. Its defining feature is the integrated side-pull enclosure system. This incorporates wide, motorized sliding doors directly into the bed sides, enabling ergonomic, space-efficient side loading/unloading of large sheets.

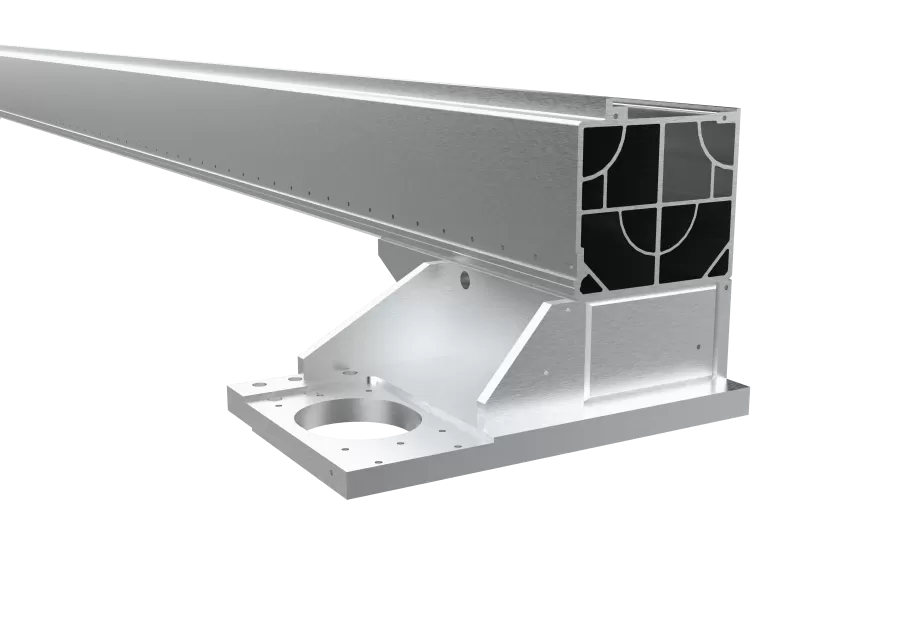

Advantages of machine crossbeam advantages
The high-strength aviation aluminum crossbeam and precision manufacturing process ensure the dynamic performance, accuracy, and stability of the machine during operation.

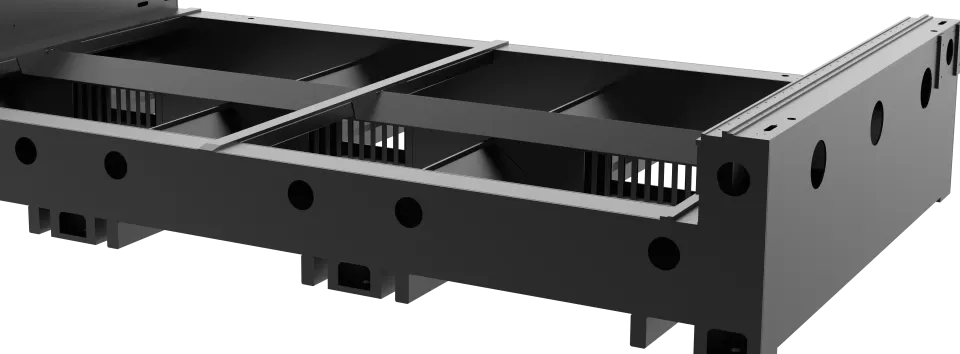

The purpose of designing multiple holes on the bed
The strategically perforated welded steel bed offers critical functional benefits. Holes enable highly effective downdraft ventilation, ensuring fumes and particulates are efficiently extracted downward through the bed, away from the cutting lens and workpiece, improving cut quality and system cleanliness. The holes significantly reduce weight while maintaining structural rigidity through optimized welding patterns. This improves thermal stability during high-power cutting. The open structure prevents heat buildup and reduces warping risk.
Follow-up dust removal device
Intelligent follow-up dust removal system, the most suitable pipeline system for smoke and dust flow, efficient, environmentally friendly and pollution-free.
The Side Pull Plate Fiber Laser Cutting Machine by New Hope is designed to optimize high-volume metal cutting with precision and efficiency. Its innovative side-pull feed system allows operators to load large metal sheets from the side, reducing downtime and improving workflow. This ergonomic design not only enhances safety and productivity but also saves valuable floor space.
Technical Parameter
| Machine model | 1530C |
| Work area | 3048mm*1524mm |
| Max speed | 100m/min |
| Acceleration | 1.5G |
| Z-axis travel | 120mm |
| Positioning accuracy | ±0.05mm/m |
| Repeat positioning accuracy | ±0.03mm |
| Table load bearing weight | 1000kg |
| Adaptation power | 1500W-12000W |
Product Features
1. Optimized Material Handling:Features a motorized side-pull enclosure door, enabling fast, ergonomic loading/unloading of large sheets or partially cut nests directly from the side.
2. Enhanced Safety & Containment: Full IP54-rated enclosure with safety interlocks ensures complete containment of laser radiation, fumes, and noise, protecting operators and meeting strict safety standards.
3. Integrated Dust Extraction:Incorporates high-efficiency fume extraction systems directly within the enclosure, capturing hazardous particulates at the source for a cleaner workshop environment.
4. Dual-Door Productivity:Allows operators to prepare the next sheet on the external side table while the machine is actively cutting, maximizing uptime and throughput.
5. Space-Efficient Operation:The side-access design minimizes floor space requirements for material flow compared to front-loading systems and reduces operator movement around the machine.
The Side Pull Plate Fiber Laser Cutting Machine is ideal for precision cutting of various metal sheets across multiple industries. Its versatility and high-speed cutting capabilities make it suitable for:
● Sheet Metal Fabrication: Perfect for high-precision cutting of steel, stainless steel, aluminum, and other metal sheets.
● Automotive Manufacturing: Supports the production of car body parts and complex components requiring high accuracy.
● Mechanical Equipment Production: Ensures rapid and precise cutting for machinery parts.
● Home Appliance Industry: Efficiently cuts metal panels for appliances, providing clean edges and minimal material waste.
● Construction & Architectural Metalwork: Capable of cutting custom panels and components with exact dimensions.
● Maximizes throughput with side-load dual-stage operation.
● Ensures operator safety with full enclosure and advanced dust extraction.
● Reduces labor intensity and production downtime.
● Delivers precise cuts with minimal material waste.
