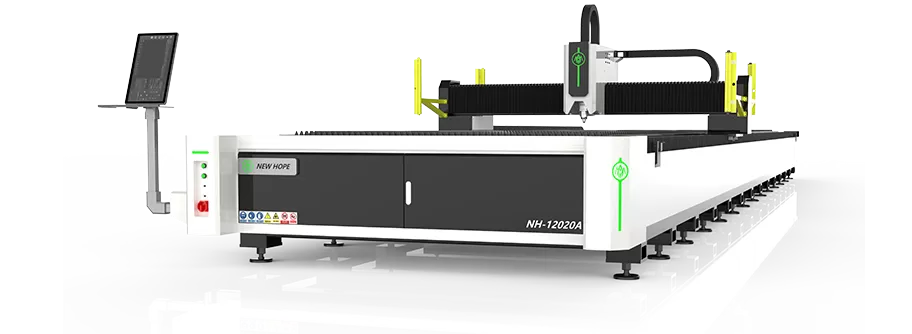

NH-12020A
Large Format Plate Fiber Laser Cutting Machine
1.This Large Format Plate Fiber Laser Cutting Machine (12000mm×2000mm) features a welded plate bedframe for exceptional structural stability, ensuring minimal vibration during high-precision cutting. The aviation-grade aluminum crossbeam, renowned for its high strength-to-weight ratio, enables rapid traverse speeds while maintaining accuracy.
2. Its zoned dust extraction system efficiently removes cutting debris and fumes in different working areas, improving operational safety and prolonging equipment lifespan.
3.Combining robust construction with advanced materials, this Large Format plate cutting machine delivers superior performance in processing large-scale metal sheets, ideal for industries requiring high-efficiency and reliable cutting solutions.

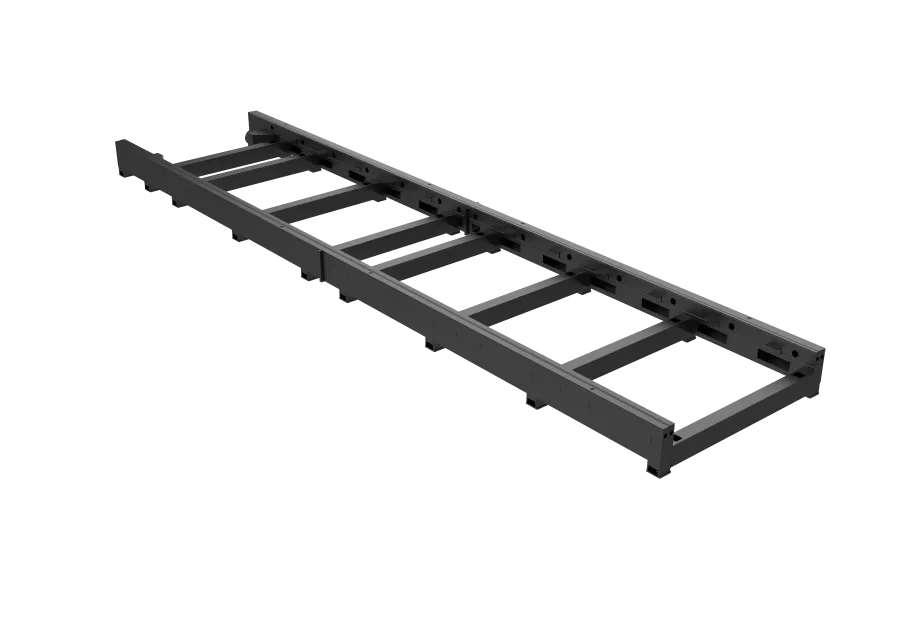

Advantages of bed structure
The welded plate bedframe of this 12000mm×2000mm large-format fiber laser cutter offers outstanding structural rigidity. It effectively minimizes vibration during high-power cutting, ensuring consistent precision on large workpieces. The integral welding process enhances load-bearing capacity, allowing stable operation even with heavy-duty materials. This design also reduces thermal deformation, maintaining long-term machining accuracy for prolonged use.

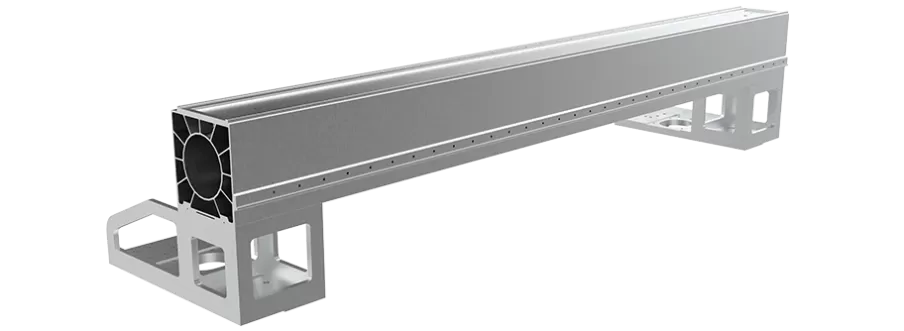

Advantages of machine crossbeam advantages
The aviation-grade aluminum crossbeam of large-format fiber laser cutters offers remarkable advantages. Its high strength-to-weight ratio enables rapid traverse speeds while minimizing inertia, ensuring precise and efficient cutting. The lightweight yet rigid structure reduces energy consumption and mechanical wear, while excellent thermal conductivity prevents deformation during prolonged operation, maintaining consistent cutting accuracy for large-scale workpieces.

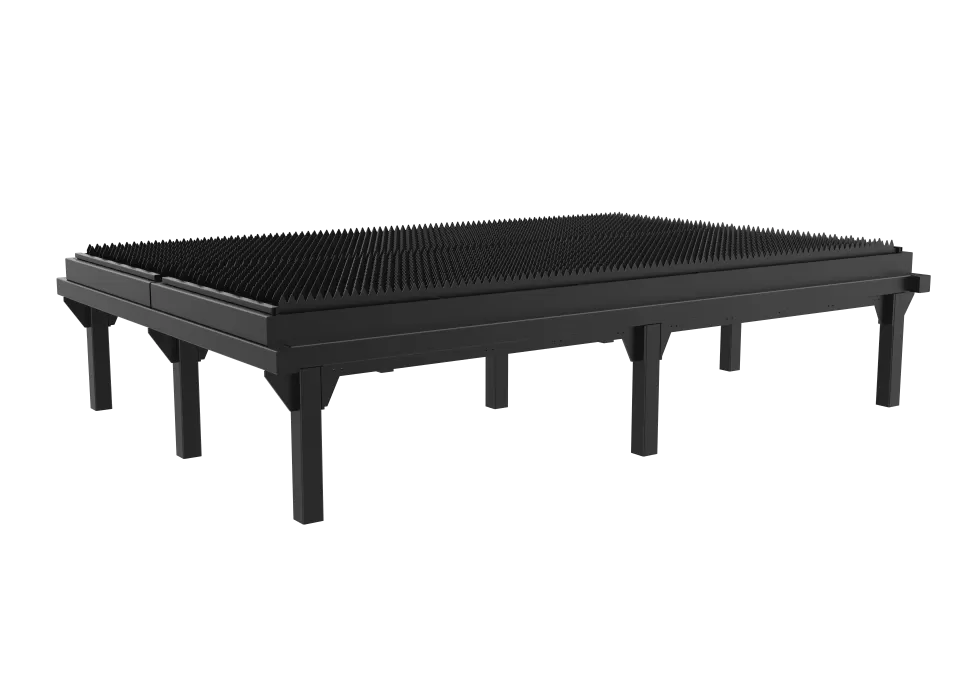

The advantages of a separate floor-standing table
It allows independent installation and adjustment, reducing interference from the gantry structure. Easy to level and stabilize, suitable for various workshop grounds. Convenient for material loading/unloading and maintenance, improving operational flexibility. Enhances cutting accuracy by minimizing vibration transmission.

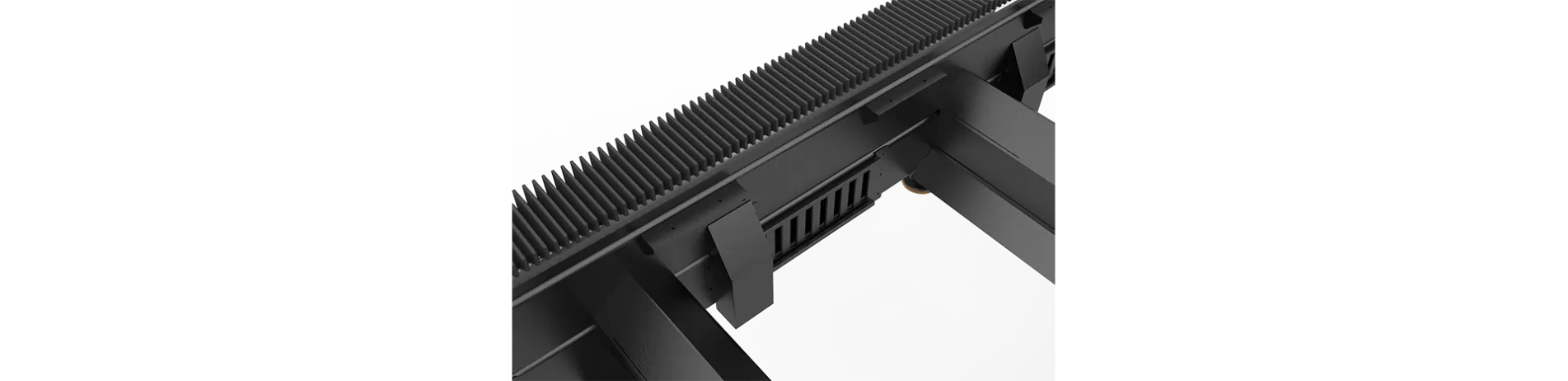

Follow-up dust removal device
It efficiently removes cutting debris and fumes from specific work areas, improving air quality and operational safety. This modular design allows targeted suction, reducing energy consumption while enhancing dust collection efficiency. It also prevents debris accumulation, minimizing equipment wear and maintaining consistent cutting precision over prolonged use.
Technical Parameter
| Machine model | 12020A | 12025A | 14032A |
| Work area | 12000mm*2000mm | 12000mm*2500mm | 14000mm*3200mm |
| Max speed | 100m/min | 100m/min | 100m/min |
| Acceleration | 1.5G | 1.5G | 1.5G |
| Z-axis travel | 150mm | 150mm | 150mm |
| Positioning accuracy | ±0.05mm | ±0.05mm | ±0.05mm |
| Repeat positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Table load bearing weight | 15000kg | 15300kg | 22800Kg |
| Adaptation power | 6000W-60000W | 6000W-60000W | 6000W-60000W |
Product Features
1. The bed is welded with mortise and tenon joints, the structure is more stable, the thick plate is not deformed when cutting, and the cutting accuracy of the equipment is guaranteed.
2. The workbench is modularly designed, each module is independently loaded and does not affect each other, and disassembly and maintenance are more convenient and quick.
3. Aviation-grade aluminum beams, high strength, high corrosion resistance, long life, long-term use stable without deformation.
4. Intelligent follow-up dust removal system, the most suitable pipeline system for smoke flow, efficient, environmentally friendly and pollution-free.
5. Bus motor control, better dynamic performance, suitable for a variety of processing scenarios.
6. Intelligent control system, compatible with various types of drawings, air movement obstacle avoidance, flying cutting, traceless micro-connection and other functions.
The Large Format Plate Fiber Laser Cutting Machine is widely used for high-precision metal plate processing across multiple industries, including:
Military industry
Aerospace
Textile machinery
Medical equipment
Fitness equipment
Automotive parts
Petrochemical machinery
Agricultural machinery
Automated production lines
Civil and general industrial machinery
We offer complimentary sample cutting and testing services. Simply provide your CAD file (.plt or .ai), and our factory will complete the cutting process. We can record a video to demonstrate the cutting procedure and results, or ship the finished samples to you for quality evaluation.
Based on the customer’s specific processing requirements, we develop tailored solutions aimed at improving manufacturing efficiency while ensuring superior processing quality.
According to the customer’s application needs, our large-format fiber laser cutters can be modified and optimized to enhance operational convenience and maximize production efficiency.
With over 10 years of industry experience, New Hope is an integrated manufacturer specializing in R&D, production, and sales of Plate Metal Cutting Machine. From design to final delivery, every step is strictly managed under a comprehensive quality control system to ensure stable performance and long-term reliability. Our products are manufactured in compliance with international standards and backed by complete certifications, giving customers confidence in both quality and compliance. By combining proven technology with application-driven customization, New Hope delivers efficient, precise, and dependable cutting solutions tailored to real production needs.
