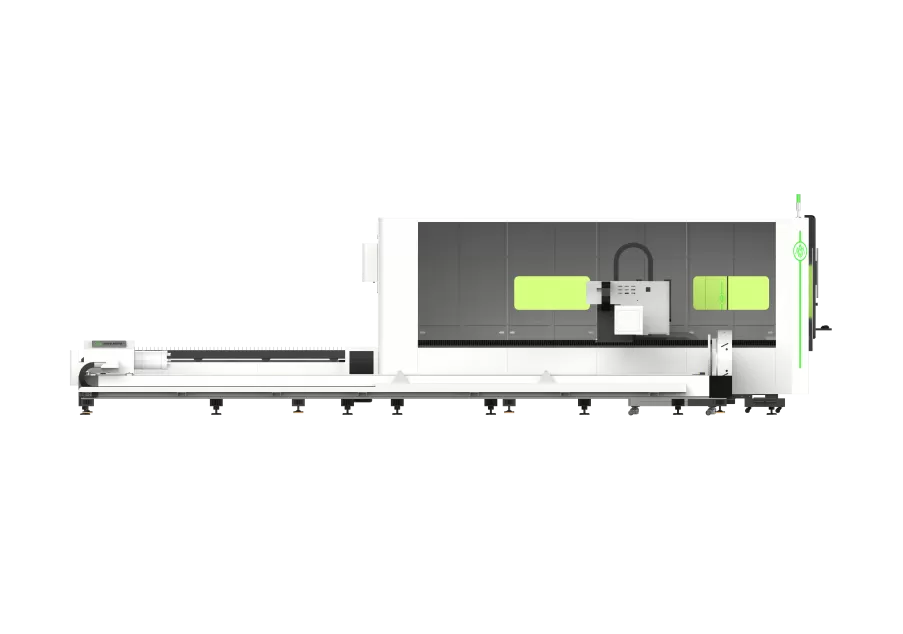

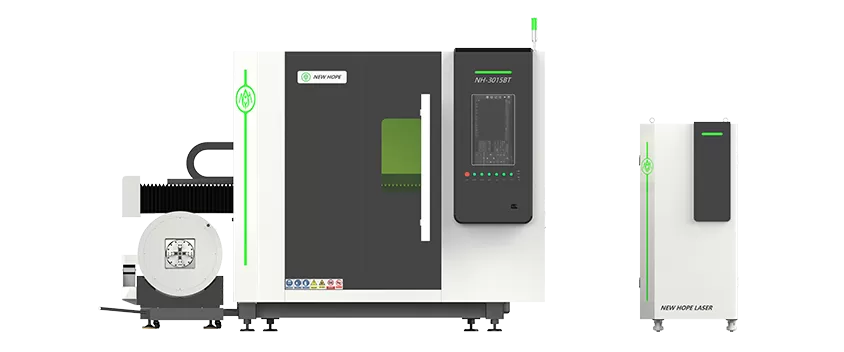

NH-3015BT
Exchange platform plateand tube integrated laser cutting machine
1. Structural Design
The large - enclosure plate - and - tube integrated laser cutting machine has a fully enclosed structure. This design effectively isolates the cutting area from the external environment, preventing laser radiation, smoke, and spatter from spreading. It ensures a clean and safe working space, protecting operators and reducing environmental pollution.
2. Cutting Versatility
It excels in both plate and tube cutting. For plates, it can handle various thicknesses of metal sheets like carbon steel, stainless steel, etc., with high - precision cutting paths. For tubes, it supports different diameters and shapes, enabling one - machine - for - multiple - tasks, which is highly efficient for diversified production needs.
3. Precision and Efficiency
Equipped with advanced laser sources and motion control systems, it achieves high - speed cutting while maintaining extremely high precision. The cutting edges are smooth, burr - free, reducing post - processing procedures. Whether for complex plate patterns or tube notching, it can complete tasks accurately and quickly.
4. Intelligent Operation
The machine is integrated with an intelligent control platform. The user - friendly interface allows for easy programming, parameter setting, and real - time monitoring of cutting processes. Automatic functions such as focusing and edge finding further simplify operations, improving production efficiency and reducing operator skill requirements.
5. Stability and Durability
The large - enclosure design, combined with a robust mechanical structure, ensures stable operation. High - quality components and strict assembly processes make the machine durable. It can run continuously for long hours in industrial production environments, minimizing downtime and maintenance costs, and ensuring long - term stable production.
Advantages of bed structure
The large - enclosure plate - and - tube integrated laser cutting machine has a fully enclosed structure. This design effectively isolates the cutting area from the external environment, preventing laser radiation, smoke, and spatter from spreading. It ensures a clean and safe working space, protecting operators and reducing environmental pollution.

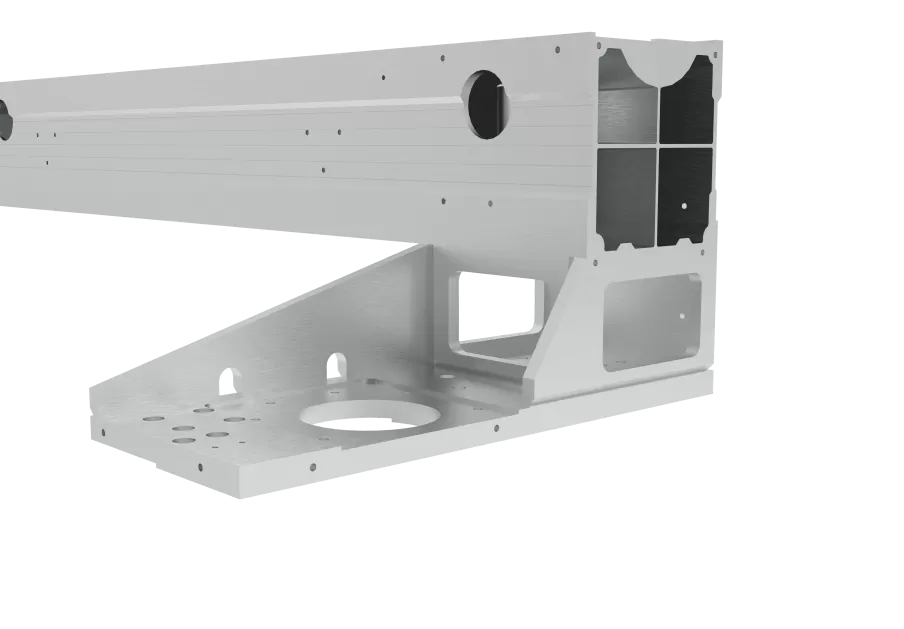

Advantages of machine crossbeam advantages
The high-strength aviation aluminum crossbeam and precision manufacturing process ensure the dynamic performance, accuracy, and stability of the machine during operation.

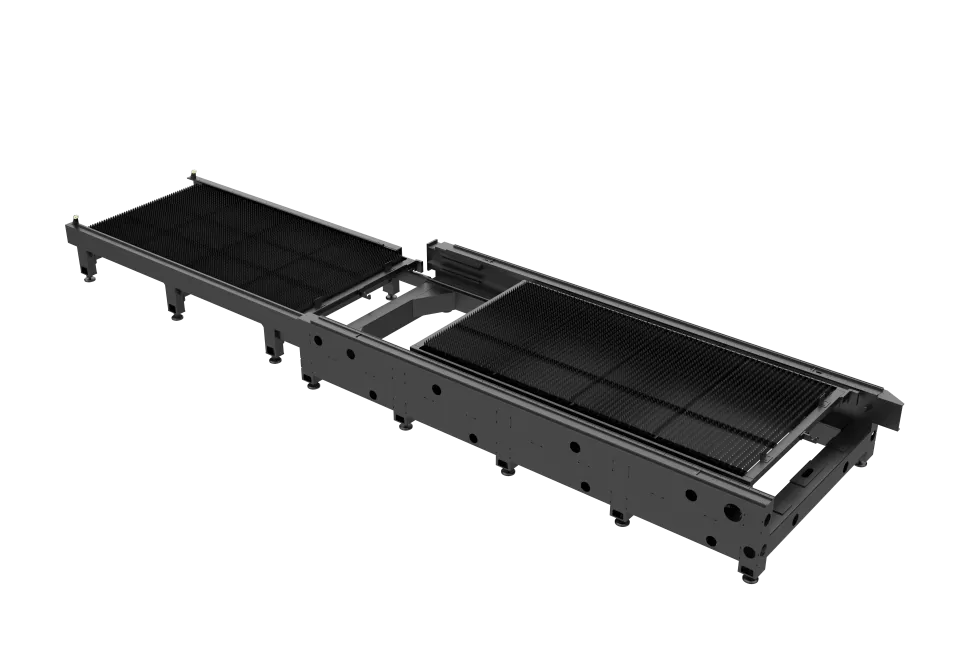

Advantages of dual-drive switching platform
With independent dual motors driving the platforms, it enables synchronized material loading/unloading and cutting, eliminating idle time. This design boosts production efficiency by over 50% through seamless workflow. The balanced dual-drive system ensures stable, precise platform movement, reducing vibration and enhancing operational reliability for continuous high-volume manufacturing.

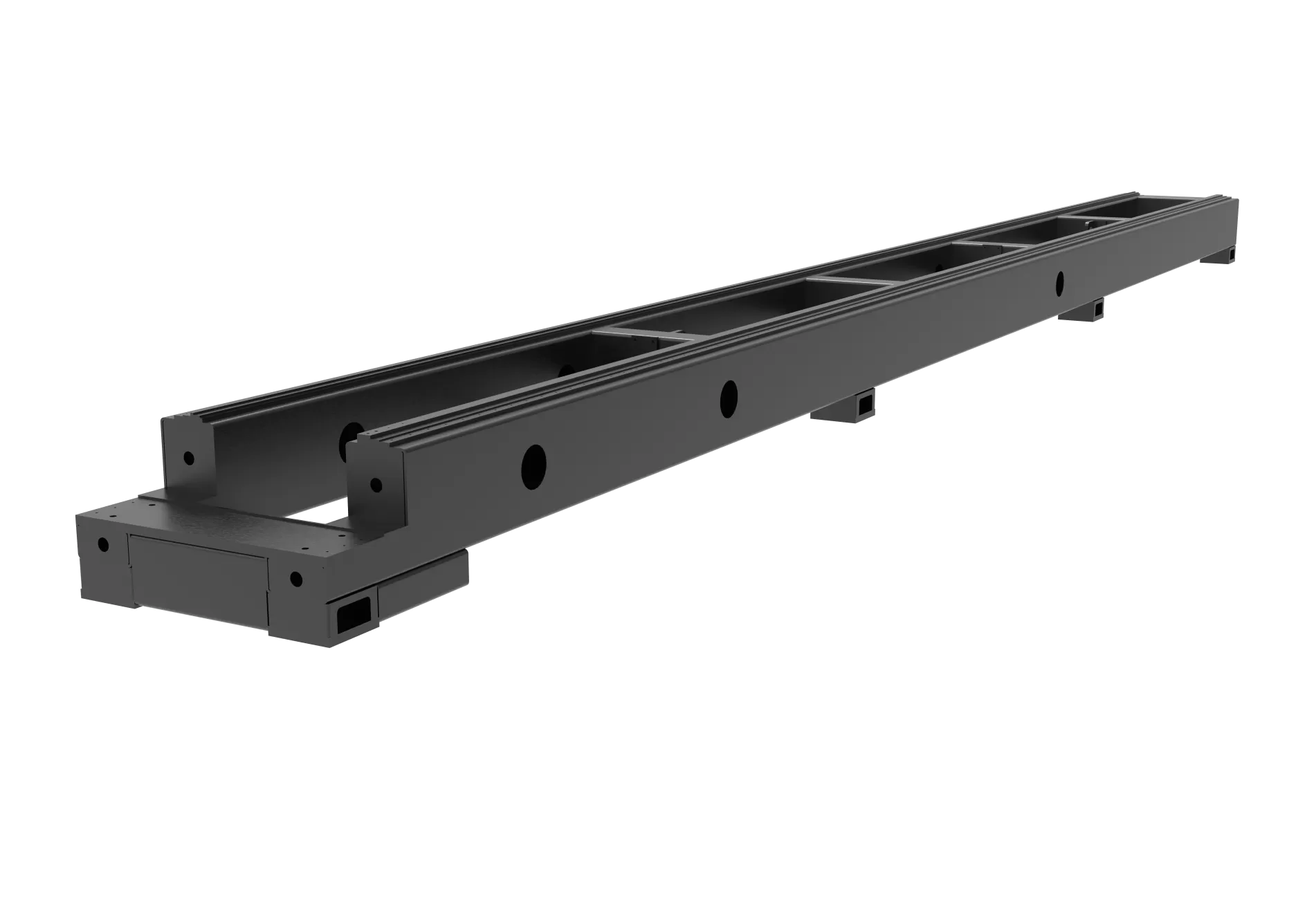

Advantages the tube bed
The bed of the tube - cutting part in the plate - and - tube integrated laser cutting machine has high - strength structural design. It ensures stability during high - speed tube cutting, resists deformation, and provides precise support, enhancing cutting accuracy and equipment durability.
Technical Parameter
| Machine model | 3015BT | 4020BT | 6025BT |
| Work area | 3048mm*1524mm | 4064mm*2032mm | 6096mm*2540mm |
| Pipe clamping diameter | 100m/min | 100m/min | 100m/min |
| Max speed | 1.5G | 1.5G | 1.5G |
| Max acceleration | 320mm | 320mm | 320mm |
| Z-axis travel | ±0.05mm/m | ±0.05mm/m | ±0.05mm/m |
| Positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Repeat positioning accuracy | 1000kg | 1600kg | 3000kg |
| Table load bearing weight | 1500W-12000W | 1500W-12000W | 1500W-12000W |
| Adaptation power | 3015B | 4020B | 6025B |
Product Features
1. Structural Design
The large - enclosure plate - and - tube integrated laser cutting machine has a fully enclosed structure. This design effectively isolates the cutting area from the external environment, preventing laser radiation, smoke, and spatter from spreading. It ensures a clean and safe working space, protecting operators and reducing environmental pollution.
2. Cutting Versatility
It excels in both plate and tube cutting. For plates, it can handle various thicknesses of metal sheets like carbon steel, stainless steel, etc., with high - precision cutting paths. For tubes, it supports different diameters and shapes, enabling one - machine - for - multiple - tasks, which is highly efficient for diversified production needs.
3. Precision and Efficiency
Equipped with advanced laser sources and motion control systems, it achieves high - speed cutting while maintaining extremely high precision. The cutting edges are smooth, burr - free, reducing post - processing procedures. Whether for complex plate patterns or tube notching, it can complete tasks accurately and quickly.
4. Intelligent Operation
The machine is integrated with an intelligent control platform. The user - friendly interface allows for easy programming, parameter setting, and real - time monitoring of cutting processes. Automatic functions such as focusing and edge finding further simplify operations, improving production efficiency and reducing operator skill requirements.
5. Stability and Durability
The large - enclosure design, combined with a robust mechanical structure, ensures stable operation. High - quality components and strict assembly processes make the machine durable. It can run continuously for long hours in industrial production environments, minimizing downtime and maintenance costs, and ensuring long - term stable production.
Call to Action
FAQ
1.What's your warranty policy?
Answer:
The machine comes with a 2-3 years warranty for different laser sources, weprovide whole life free service for our machine and customers only need to payfor necessary parts&express costs for Out-of-Warranty Period.
2.How about your oversea service? What can I do if there is someproblem with my machine?
Answer:
Free training and technical support are always available for all customers Installation on-site or 7X24 online installation quidance is also provided.
3.How can I choose the most suitable machine?
Answer:
Please let us know the materials you want to proceed, with or what job you needto do with the machine, our sales will recommend machines with suitable configurations and solutions for all your production needs.
4.Do you offer OEM&ODM or customized service?
Answer:
OEM or ODM is welcomed. New Hope provide all kinds of solutions for automation, laser cutting/welding/cleaning, customized machines, and service for our esteemed customer. Our technology team together with our cooperated scientific institution&colleges and universities, provide our clients with more efficient, stable and cost-saving solutions.
5.Can we sell your machine in our country as a local agent?
Answer:
Yes, we will support our agents with training, installation, after-sales, and technical support service to ensure the well-use of each machine on the end-user's site.
